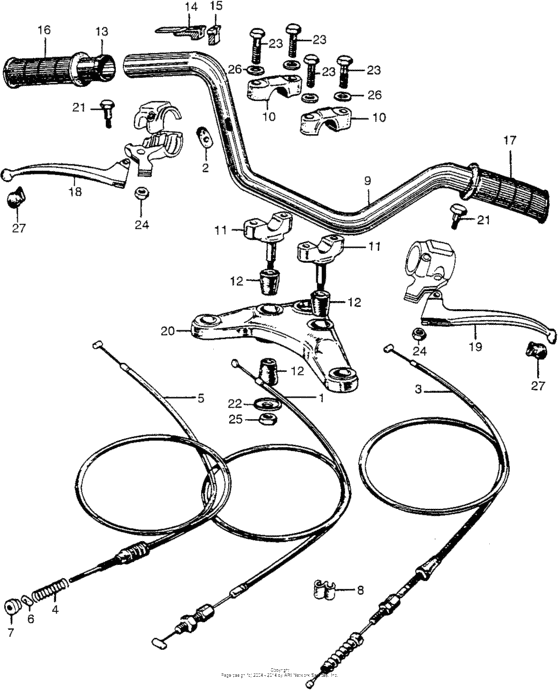

Ca175 handlebar Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-237-680
Wire,throttle
|
17910-237-680 |
— | ||
|
2
|
2
17911-023-000 Grommet,throttle |
17911-023-000 |
from US $4.88 |
||
|
3
|
3
22870-302-601
Cable comp,clutch
|
22870-302-601 |
— | ||
|
4
|
4
45435-250-000 Spring, fr |
45435-250-000 |
from US $3.40 |
||
|
5
|
5
45450-237-671
Wire,front brake
Use from Frame SN 1024582 |
45450-237-671 |
— | ||
|
5
|
5
45450-243-000
Wire,front brake
|
45450-243-000 |
— | ||
|
6
|
6
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
7
|
7
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
8
|
8
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $6.53 |
||
|
9
|
9
53100-303-000
Pipe, handle
|
53100-303-000 |
— | ||
|
10
|
10
53131-283-000 Holder bi,upper |
53131-283-000 |
from US $11.15 |
||
| replacement | |||||
|
10
|
10
95014-22100 Holder b1, handlebar |
95014-22100 |
from US $7.70 |
||
|
10
|
10
95014-22100 Holder b1, handlebar |
95014-22100 |
from US $7.70 |
||
|
11
|
11
53132-237-680
Holder, handlebar
|
53132-237-680 |
— | ||
|
12
|
12
53133-237-680 Rubber,cushion |
53133-237-680 |
from US $2.80 |
||
|
13
|
13
53141-271-000
Pipe, grip
|
53141-271-000 |
— | ||
|
14
|
14
53161-250-000
Hinge, throttle wire
|
53161-250-000 |
— | ||
|
15
|
15
53162-042-000
Holder, throttle
|
53162-042-000 |
— | ||
|
16
|
16
95011-14100 Grip d, r. handle |
95011-14100 |
from US $4.74 |
||
|
17
|
17
95011-13200 Glip c,l.handle |
95011-13200 |
from US $3.26 |
||
|
18
|
18
53175-230-010 Lever,r.strg.hndl |
53175-230-010 |
US $24.65 |
||
|
19
|
19
53190-242-670 Lever, l. handle |
53190-242-670 |
US $39.30 |
||
|
19
|
19
53192-203-000 BoltUse from Frame SN 1017136 |
53192-203-000 |
from US $0.52 |
||
|
20
|
20
53231-237-680
Bridge, fork top
|
53231-237-680 |
— | ||
|
21
|
21
90114-028-000 Screw, pivot |
90114-028-000 |
from US $6.36 |
||
|
21
|
21
90321-315-670 Nut, fixingUse from Frame SN 1017136 |
90321-315-670 |
from US $5.83 |
||
|
22
|
22
90535-283-000
Washer, cushion
|
90535-283-000 |
— | ||
|
23
|
23
92101-08038-0B Bolt, hex. (8x38) |
92101-08038-0B |
US $0.81 |
||
|
24
|
24
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
25
|
25
9403010000 Nut, hex., 10mmUse up to Frame SN 1021493 |
9403010000 |
from US $0.55 |
||
|
25
|
25
94001-100-000-S NutHEX., 10MM Use from Frame SN 1021494 |
94001-100-000-S |
from US $0.44 |
||
|
26
|
26
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
27
|
27
95010-16001 Cap.handle.lever |
95010-16001 |
from US $2.07 |
||
