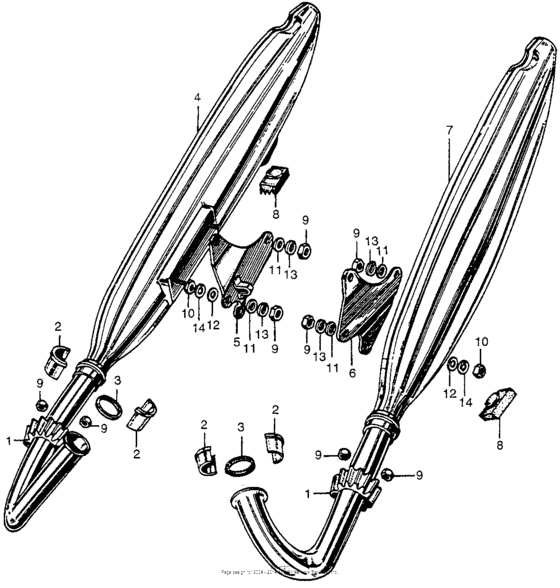

Ca175 muffler Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-236-000
Joint,exh.pipe
|
18231-236-000 |
— | ||
|
2
|
2
18233-236-000
Collar,exh,pipe
|
18233-236-000 |
— | ||
|
3
|
3
18291-MN4-920 Gasket, ex. pipe |
18291-MN4-920 |
from US $5.33 |
||
|
4
|
4
18300-237-687
Muffler comp.,ex.
|
18300-237-687 |
— | ||
|
5
|
5
18353-237-680-Z
Bracket, r. muffler
|
18353-237-680-Z |
— | ||
|
6
|
6
18354-237-680-Z
Bracket, l. muffler
|
18354-237-680-Z |
— | ||
|
7
|
7
18400-237-687
Muffler comp.,ex.
|
18400-237-687 |
— | ||
|
8
|
8
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
9
|
9
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
10
|
10
9403010000 Nut, hex., 10mmUse up to Frame SN 1021493 |
9403010000 |
from US $0.55 |
||
|
10
|
10
94001-100-000-S NutHEX., 10MM Use from Frame SN 1021494 |
94001-100-000-S |
from US $0.44 |
||
|
11
|
11
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
12
|
12
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
13
|
13
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
14
|
14
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
