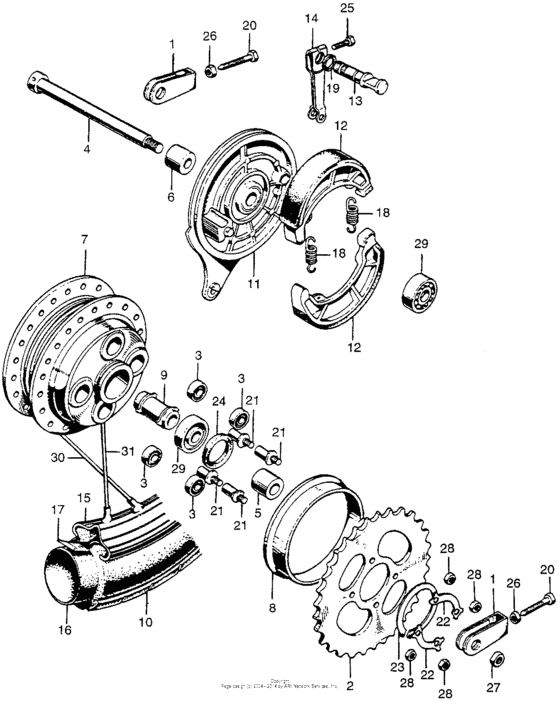

Ca175 rear wheel Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-230-010
Adjuster,chain
|
40543-230-010 |
— | ||
|
2
|
2
41201-240-509
Sprocket,driven
|
41201-240-509 |
— | ||
|
3
|
3
41241-222-000 Bush,rear.damper |
41241-222-000 |
from US $16.46 |
||
|
4
|
4
42301-230-000
Axle, rr. wheel
|
42301-230-000 |
— | ||
|
5
|
5
42304-230-000
Collar,rear axle
|
42304-230-000 |
— | ||
|
6
|
6
42313-230-020
Colr, rr. side wheel
|
42313-230-020 |
— | ||
|
7
|
7
42601-240-010
Hub,rear wheel
|
42601-240-010 |
— | ||
|
8
|
8
42602-230-000
Dustseal,rr.wheel
|
42602-230-000 |
— | ||
|
9
|
9
42620-230-010 Collar,rear.axle |
42620-230-010 |
US $17.04 |
||
|
10
|
10
42711-230-000
Tire, rr. (3.00-16)
|
42711-230-000 |
— | ||
|
11
|
11
43100-230-030 Panel, rr. brake |
43100-230-030 |
US $246.40 |
||
|
12
|
12
43120-230-000
Shoe,rear brake
|
43120-230-000 |
— | ||
|
13
|
13
43141-230-010
Cam, rr. brake
Use up to Frame SN 1017611 |
43141-230-010 |
— | ||
|
13
|
13
43141-230-020
Cam, rr. brake
Use from Frame SN 1017612 |
43141-230-020 |
— | ||
|
14
|
14
43410-230-010
Arm,rear brake
Use up to Frame SN 1017611 |
43410-230-010 |
— | ||
|
14
|
14
43410-235-010
Arm,rear brake
Use from Frame SN 1017612 |
43410-235-010 |
— | ||
|
15
|
15
44701-230-000
Rim,wheel
|
44701-230-000 |
— | ||
|
16
|
16
42712-167-005 Tube (2.75/3.00-16) |
42712-167-005 |
US $11.22 |
||
|
17
|
17
42713-102-005 Flap,tire inoue |
42713-102-005 |
US $9.55 |
||
|
18
|
18
45133-303-000
Spring brake shoe
|
45133-303-000 |
— | ||
|
19
|
19
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
20
|
20
90119-205-000
Bolt, chain
|
90119-205-000 |
— | ||
|
21
|
21
90128-216-000 Bolt,driven |
90128-216-000 |
from US $8.44 |
||
|
22
|
22
94108-13000 Washer,tongued |
94108-13000 |
from US $0.65 |
||
|
23
|
23
90664-216-000 Circlip (58mm) |
90664-216-000 |
from US $5.18 |
||
|
24
|
24
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
25
|
25
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94001-140-000-S Nut, hex., 14mmUse up to Frame SN 1021493 |
94001-140-000-S |
from US $0.74 |
||
|
27
|
27
94001-140-200-S
Nut,hex 14m/m
Use from Frame SN 1021494 |
94001-140-200-S |
— | ||
|
28
|
28
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
29
|
29
96120-63020
B/brg rad n/com
|
96120-63020 |
— | ||
|
30
|
30
97479-521-231
Spork, rear, b#9x
|
97479-521-231 |
— | ||
|
31
|
31
97600-521-221
Spork, rear, b#9x
|
97600-521-221 |
— |
