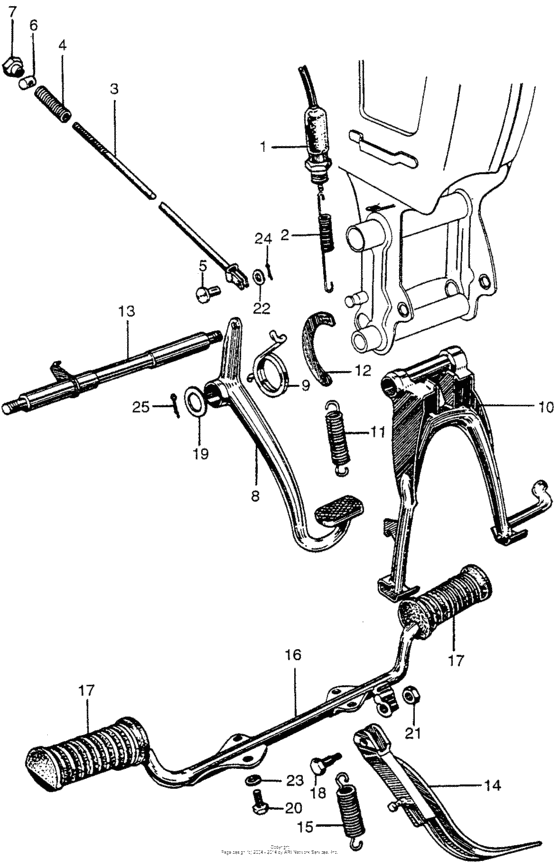

Ca175 stand + step Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
2
|
2
35357-230-000
Spring,stop sw.
|
35357-230-000 |
— | ||
|
3
|
3
43451-235-000
Rod,rear brake
|
43451-235-000 |
— | ||
|
4
|
4
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
5
|
5
95015-51000 Pin a, brake rod joint |
95015-51000 |
US $0.74 |
||
|
6
|
6
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
7
|
7
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
8
|
8
46500-237-680
Pedal, brake
|
46500-237-680 |
— | ||
|
9
|
9
46514-230-000
Spring,pedal
|
46514-230-000 |
— | ||
|
10
|
10
50500-230-030-B
Stand,main
|
50500-230-030-B |
— | ||
|
11
|
11
95014-71202 Spring,main stand |
95014-71202 |
from US $1.79 |
||
|
12
|
12
50523-205-000
Hook,stand spring
|
50523-205-000 |
— | ||
|
13
|
13
50526-230-000
Shaft,main stand
|
50526-230-000 |
— | ||
|
14
|
14
50530-230-305
Bar,side stand
|
50530-230-305 |
— | ||
|
15
|
15
95014-72204 Spg.b1,side stand |
95014-72204 |
from US $1.63 |
||
|
16
|
16
50610-237-680-B
Bar,step
|
50610-237-680-B |
— | ||
|
17
|
17
50661-230-000
Rubber,step
|
50661-230-000 |
— | ||
|
18
|
18
90108-200-000
Screw, pivot
Use up to Frame SN 1021493 |
90108-200-000 |
— | ||
|
18
|
18
90108-230-000
Screw,pivot
Use from Frame SN 1021494 |
90108-230-000 |
— | ||
|
19
|
19
90512-283-000
Washer, 19mm
|
90512-283-000 |
— | ||
|
20
|
20
92101-08025-0B Bolt,hex.,8x25 |
92101-08025-0B |
from US $0.81 |
||
|
21
|
21
94002-100-000-S NutHEX., 10MM Use up to Frame SN 1021493 |
94002-100-000-S |
from US $0.55 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
24
|
24
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
25
|
25
94201-30150 Pin, split, 3.0x15 |
94201-30150 |
from US $0.37 |
