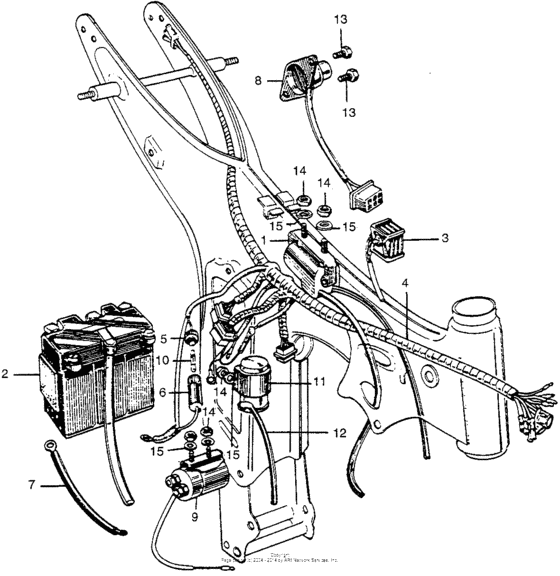

Ca175 wire harness + battery Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
35101-237-670
Collar
Use from Frame SN 1017136 |
35101-237-670 |
— | ||
|
1
|
1
30500-230-000
Coil,ignition
|
30500-230-000 |
— | ||
|
2
|
2
31500-237-670
Battery,b54-6,a
|
31500-237-670 |
— | ||
|
3
|
3
31700-230-000 Rectifier,selen. |
31700-230-000 |
US $308.36 |
||
|
4
|
4
32100-237-305
Wire harness
Use from Frame SN 1017136 |
32100-237-305 |
— | ||
|
5
|
5
32106-253-010
Connector a,fuse
Use up to Frame SN 1018404 |
32106-253-010 |
— | ||
|
5
|
5
32111-230-000 Case, fuse connectorUse from Frame SN 1018405 |
32111-230-000 |
from US $4.88 |
||
|
6
|
6
32112-230-000 Connector, fuseUse from Frame SN 1018405 |
32112-230-000 |
from US $5.66 |
||
|
6
|
6
32112-253-010 Connector b,fuseUse up to Frame SN 1018404 |
32112-253-010 |
US $4.31 |
||
|
7
|
7
32601-237-680
Cable,bat.earth
|
32601-237-680 |
— | ||
|
8
|
8
35010-230-010
Switch kit,comb.
|
35010-230-010 |
— | ||
|
9
|
9
35850-230-000
Switch,magnetic
|
35850-230-000 |
— | ||
|
10
|
10
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
|
11
|
11
38300-237-600
Relay,winker
|
38300-237-600 |
— | ||
|
12
|
12
38304-243-303
Wire, turn signal
Use from Frame SN 1017136 |
38304-243-303 |
— | ||
|
13
|
13
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
13
|
13
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
14
|
14
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
15
|
15
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
