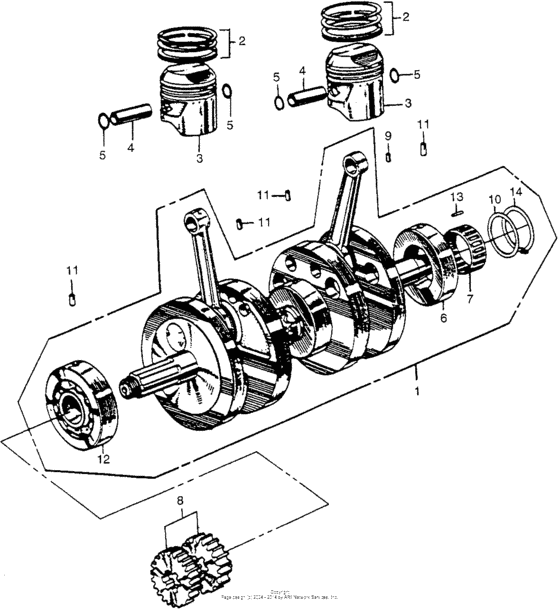

Crankshaft Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-235-000
Crankshaft assy
|
13000-235-000 |
— | ||
|
2
|
2
13011-439-005 Ring set (std) |
13011-439-005 |
from US $43.52 |
||
|
2
|
2
13012-235-000 Ring set (std) |
13012-235-000 |
from US $68.53 |
||
|
2
|
2
13022-235-000
Ring set (os) (0.25)
|
13022-235-000 |
— | ||
|
2
|
2
13031-439-005
Ring set (0.50)
|
13031-439-005 |
— | ||
|
2
|
2
13032-235-000 Ring set (os) (0.50) |
13032-235-000 |
US $48.84 |
||
|
2
|
2
13042-235-000 Ring set (os) (0.75) |
13042-235-000 |
US $128.91 |
||
|
2
|
2
13052-235-000 Ring set (1.00) |
13052-235-000 |
US $118.59 |
||
|
3
|
3
13101-235-000
Piston (std)
|
13101-235-000 |
— | ||
|
3
|
3
13102-235-000
Piston (os) (0.25)
|
13102-235-000 |
— | ||
|
3
|
3
13103-235-000
Piston (os) (0.50)
|
13103-235-000 |
— | ||
|
3
|
3
13104-235-000 Piston, 0.75 |
13104-235-000 |
US $83.91 |
||
|
3
|
3
13105-235-000
Piston (1.00)
|
13105-235-000 |
— | ||
|
4
|
4
13111-028-000 Pin, piston |
13111-028-000 |
from US $4.09 |
||
|
4
|
4
13111-217-000 Pin, piston |
13111-217-000 |
US $13.50 |
||
| replacement | |||||
|
4
|
4
13111-028-000 Pin, piston |
13111-028-000 |
from US $4.09 |
||
|
5
|
5
94601-14000 Clip, piston pin, 14mm |
94601-14000 |
from US $0.44 |
||
|
6
|
6
13427-216-004
R/brg other n/com
|
13427-216-004 |
— | ||
|
7
|
7
13482-216-000
Retainer,main brg
|
13482-216-000 |
— | ||
|
8
|
8
13615-216-020 Gear set,primary |
13615-216-020 |
US $101.03 |
||
|
9
|
9
30906-235-000
Knock,flywheel
|
30906-235-000 |
— | ||
|
10
|
10
90452-216-000
Washer, thrust
|
90452-216-000 |
— | ||
|
11
|
11
90701-202-000
Pin, knock 6x10
|
90701-202-000 |
— | ||
|
12
|
12
91001-216-000 B/brg rad n/com |
91001-216-000 |
US $36.91 |
||
|
13
|
13
91103-220-000 Roller,4x13 |
91103-220-000 |
US $2.84 |
||
|
13
|
13
9622040100 Roller, 4x10 |
9622040100 |
from US $0.22 |
||
|
14
|
14
94510-35120
Circlip,35mm
|
94510-35120 |
— | ||
