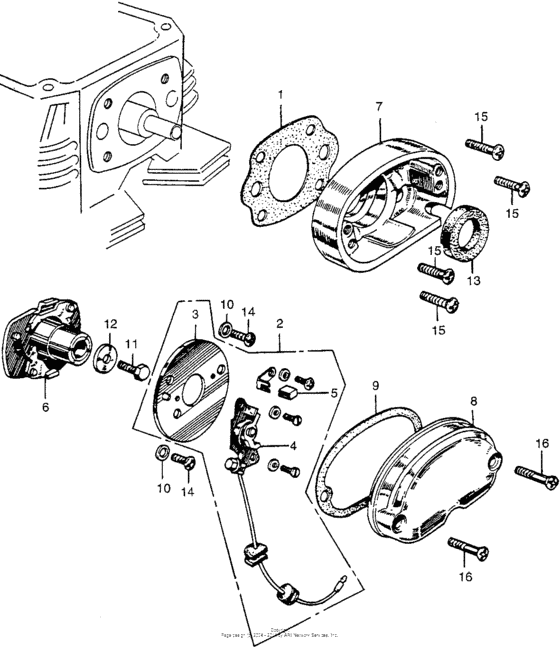

Points + spark advancer Diagram Honda CA175 Touring
- Year
- 1968
- Model code
- CA175 A
- Sales region
- USA
- Frame
- CD1751000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12394-216-306
Gskt, r. cyl hd cvr
|
12394-216-306 |
— | ||
|
2
|
2
30200-235-154
Breaker,contact
|
30200-235-154 |
— | ||
|
3
|
3
30201-107-004 Plate,breakerUse up to Engine SN 1021667 |
30201-107-004 |
US $18.11 |
||
|
3
|
3
30201-216-005
Plate, breaker
Use up to Engine SN 1021667 |
30201-216-005 |
— | ||
|
3
|
3
30201-235-015
Plate,breaker
Use from Engine SN 1021668 |
30201-235-015 |
— | ||
|
4
|
4
30202-107-004 Breaker,contact |
30202-107-004 |
from US $49.64 |
||
|
4
|
4
30202-107-154 Breaker,contact |
30202-107-154 |
US $34 |
||
|
4
|
4
30202-216-005
Breaker,contact
|
30202-216-005 |
— | ||
|
5
|
5
30205-216-004
Felt, oil
|
30205-216-004 |
— | ||
|
5
|
5
30205-216-005
Felt, oil
|
30205-216-005 |
— | ||
|
6
|
6
30220-216-000
Advancer,spark
Use up to Engine SN 1021667 |
30220-216-000 |
— | ||
|
6
|
6
30220-237-004
Advancer, spark
Use from Engine SN 1021668 |
30220-237-004 |
— | ||
|
7
|
7
30361-235-000
Base,point
|
30361-235-000 |
— | ||
|
8
|
8
30370-216-000 Cover, point |
30370-216-000 |
US $56.42 |
||
|
9
|
9
30391-216-306
Gasket, points cover
|
30391-216-306 |
— | ||
|
10
|
10
30903-216-000
Washer, lock
|
30903-216-000 |
— | ||
|
11
|
11
90001-235-000
Bolt,setting 5x20
Use from Engine SN 1021668 |
90001-235-000 |
— | ||
|
12
|
12
90544-594-000
Washer,tail light
Use from Engine SN 1021668 |
90544-594-000 |
— | ||
|
13
|
13
91204-216-003 Oil seal (20x35x55) |
91204-216-003 |
from US $4.77 |
||
|
14
|
14
93500-050-120-A ScrewPAN, 5X12 Use up to Engine SN 1021667 |
93500-050-120-A |
from US $0.37 |
||
|
15
|
15
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
16
|
16
93700-050-250-2
Screw cr,5x25p0.9
Use up to Engine SN 1021667 |
93700-050-250-2 |
— | ||
|
16
|
16
93700-050-250-A Screw,oval,5x25Use from Engine SN 1021668 |
93700-050-250-A |
from US $0.44 |
