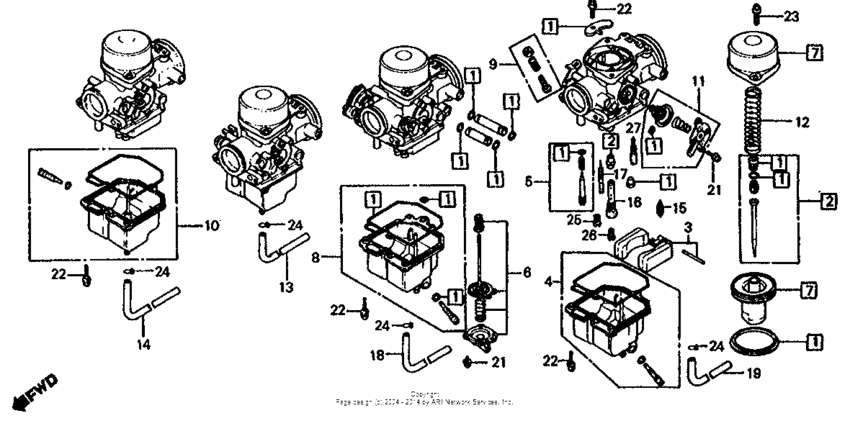

Carburetor (component parts) Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-461-405 Gasket set |
16010-461-405 |
from US $39.44 |
||
|
2
|
2
16012-461-013
Needle set,jet
|
16012-461-013 |
— | ||
|
3
|
3
16013-413-851 Float set |
16013-413-851 |
from US $62.02 |
||
|
4
|
4
16015-MC8-671
Chamber set, float
|
16015-MC8-671 |
— | ||
|
5
|
5
16016-KC2-970 Screw set A |
16016-KC2-970 |
from US $15.10 |
||
|
6
|
6
16021-MG1-671
Diaphragm pump
|
16021-MG1-671 |
— | ||
|
7
|
7
16022-461-003
Piston set, vacuum
|
16022-461-003 |
— | ||
|
8
|
8
16023-425-871
Chamber set b
|
16023-425-871 |
— | ||
|
9
|
9
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
10
|
10
16045-425-871
Chamber set c
|
16045-425-871 |
— | ||
|
11
|
11
16048-KB7-901 Valve set, air cut |
16048-KB7-901 |
from US $99.96 |
||
|
12
|
12
16050-461-003
Spring
|
16050-461-003 |
— | ||
|
13
|
13
16199-MN5-405 Tube, fuel |
16199-MN5-405 |
from US $3.70 |
||
|
14
|
14
16199-MN5-405 Tube, fuel |
16199-MN5-405 |
from US $3.70 |
||
|
15
|
15
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
16
|
16
16165-438-003
Holder,needle jet
|
16165-438-003 |
— | ||
|
17
|
17
16166-461-003
Nozzle, main
|
16166-461-003 |
— | ||
|
18
|
18
16199-MN5-405 Tube, fuel |
16199-MN5-405 |
from US $3.70 |
||
|
19
|
19
16199-MN5-405 Tube, fuel |
16199-MN5-405 |
from US $3.70 |
||
|
20
|
20
16291-300-300
Band,rubber
|
16291-300-300 |
— | ||
|
21
|
21
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
22
|
22
93892-0401600 Screw-washer (4x16) |
93892-0401600 |
from US $0.44 |
||
|
23
|
23
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
24
|
24
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
25
|
25
99101-393-0680 Jet,primary main |
99101-393-0680 |
from US $4.44 |
||
|
26
|
26
99101-GHB-1100 Jet, main (#110) |
99101-GHB-1100 |
US $10.46 |
||
| replacement | |||||
|
26
|
26
99101-MBA-1100 JetMAIN, #110 |
99101-MBA-1100 |
from US $6.66 |
||
|
27
|
27
99103-GY6-0350 Jet,slow,#35 |
99103-GY6-0350 |
from US $8.58 |
||
