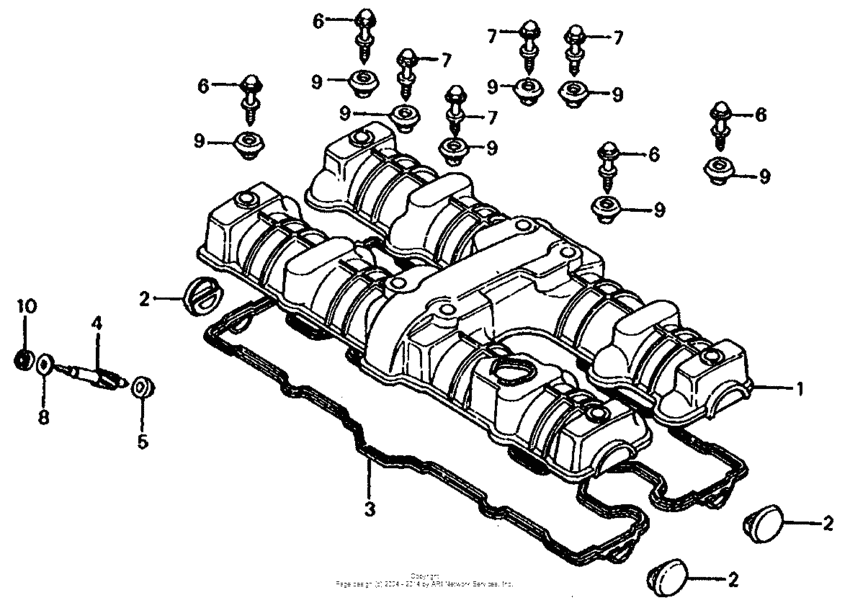

Cylinder head cover Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12310-461-000
Cover, cylinder head
|
12310-461-000 |
— | ||
|
2
|
2
12331-425-000 Cover, cyl hd side |
12331-425-000 |
from US $22.71 |
||
|
3
|
3
12391-425-010 Gasket, cyl hd cvr |
12391-425-010 |
from US $52.66 |
||
|
4
|
4
12432-425-000
Gear, tachometer
|
12432-425-000 |
— | ||
|
5
|
5
12435-425-000
Collar, tach gr
|
12435-425-000 |
— | ||
|
6
|
6
90017-425-000 Bolt,special 6mm |
90017-425-000 |
from US $4.07 |
||
|
7
|
7
90038-425-000 Bolt,special,6mm |
90038-425-000 |
from US $8.82 |
||
|
8
|
8
90454-425-000 Wash,thrust 7mm |
90454-425-000 |
US $2.01 |
||
|
9
|
9
90541-425-000 Rubber,mounting |
90541-425-000 |
from US $7.49 |
||
|
10
|
10
91256-425-003 Oil seal |
91256-425-003 |
from US $5.18 |
