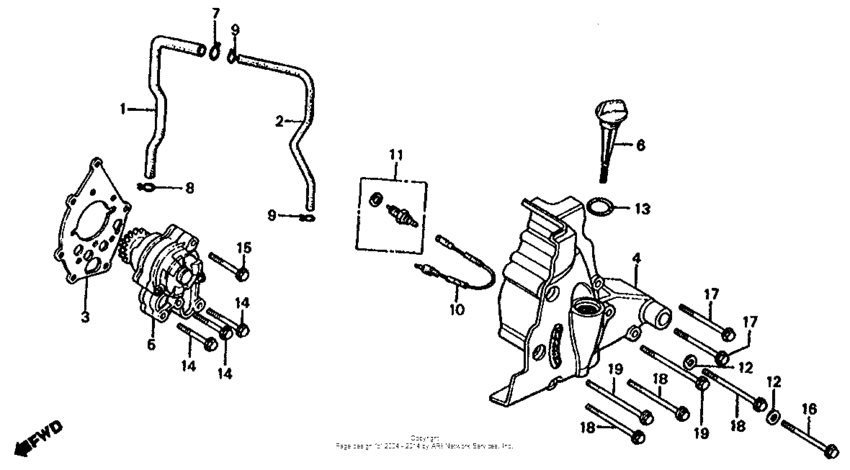

Left cover + oil pump Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11355-MA4-670
Tube, r. breather
|
11355-MA4-670 |
— | ||
|
2
|
2
11356-425-010
Tube, l. breather
|
11356-425-010 |
— | ||
|
3
|
3
11359-461-405
Gskt, l. side cover
|
11359-461-405 |
— | ||
|
4
|
4
11360-461-750
Cover, l. side
|
11360-461-750 |
— | ||
|
5
|
5
15100-438-003
Pump assy.,oil
|
15100-438-003 |
— | ||
|
6
|
6
15650-461-000
Gauge,oil level
|
15650-461-000 |
— | ||
|
7
|
7
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
8
|
8
15771-551-000 ClipOIL DRAIN TUBE |
15771-551-000 |
from US $3.77 |
||
|
9
|
9
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
10
|
10
30301-461-000
Cable
|
30301-461-000 |
— | ||
|
11
|
11
35600-425-023 Switch, neutral |
35600-425-023 |
from US $14.96 |
||
|
12
|
12
90425-300-000 Washer (11mm) |
90425-300-000 |
from US $3.58 |
||
|
13
|
13
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
14
|
14
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
||
|
15
|
15
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
|
16
|
16
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
17
|
17
96001-0605000 Bolt, flange (6x50) |
96001-0605000 |
from US $0.81 |
||
|
18
|
18
96001-0605500 Bolt, flange (6x55) |
96001-0605500 |
from US $0.81 |
||
|
19
|
19
96001-060-600-0 BoltFLANGE, 6X60 |
96001-060-600-0 |
from US $0.81 |
