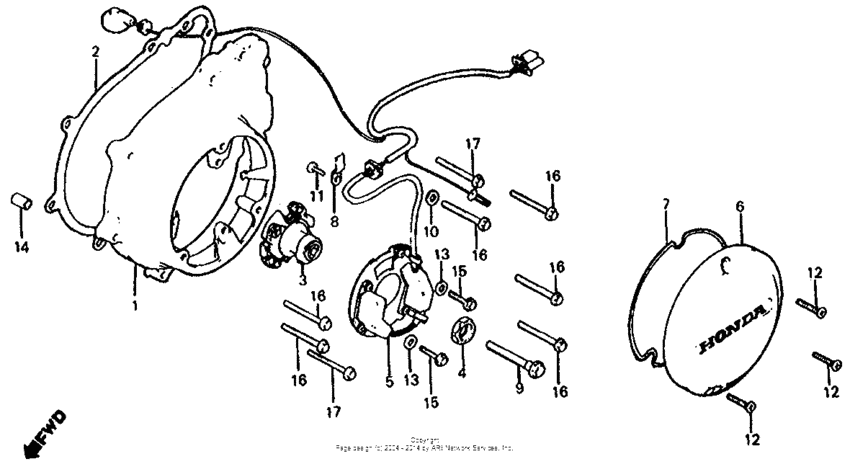

Left crankcase cover + advancer Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-438-670
Cover, l. crankcase
|
11341-438-670 |
— | ||
|
2
|
2
11395-425-306 Gasket, l |
11395-425-306 |
from US $16.32 |
||
|
3
|
3
30220-MG1-154
Advancer, spark
|
30220-MG1-154 |
— | ||
|
4
|
4
30228-425-010
Boss,timing
|
30228-425-010 |
— | ||
|
5
|
5
30300-461-405
Pulse gen,assy
|
30300-461-405 |
— | ||
|
6
|
6
30371-425-010 Cover,point |
30371-425-010 |
US $62.83 |
||
|
7
|
7
30372-425-000 Gskt,point cover |
30372-425-000 |
from US $7.99 |
||
|
8
|
8
32116-425-000
Pl,pluser cord
|
32116-425-000 |
— | ||
|
9
|
9
90052-MA3-000
Bolt,flange,8x60
|
90052-MA3-000 |
— | ||
|
10
|
10
90425-300-000 Washer (11mm) |
90425-300-000 |
from US $3.58 |
||
|
11
|
11
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
12
|
12
93700-060250A Screw, oval, 6x25 |
93700-060250A |
from US $0.58 |
||
|
13
|
13
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
14
|
14
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
15
|
15
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
16
|
16
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
||
|
17
|
17
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
