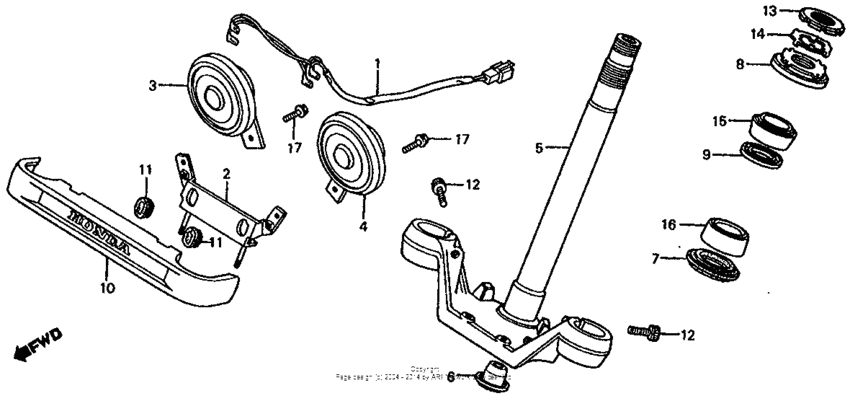

Steering stem Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-MG1-000
Sub-cable, horn
|
32101-MG1-000 |
— | ||
|
2
|
2
38102-MG1-000
Stay, horn
|
38102-MG1-000 |
— | ||
|
3
|
3
38110-MJ1-831
Horn assy. (high)
|
38110-MJ1-831 |
— | ||
|
4
|
4
38120-MB1-740
Horn assy. (low)
|
38120-MB1-740 |
— | ||
|
5
|
5
53200-MG1-000
Stem, steering
|
53200-MG1-000 |
— | ||
|
6
|
6
53205-461-000
Cap,stem
|
53205-461-000 |
— | ||
|
7
|
7
53214-371-010 Dust seal |
53214-371-010 |
from US $6.50 |
||
|
8
|
8
53220-422-000 Thread |
53220-422-000 |
from US $14.69 |
||
|
9
|
9
53223-371-010
Holder, grease
|
53223-371-010 |
— | ||
|
10
|
10
61401-MG1-000
Cover,fr.
|
61401-MG1-000 |
— | ||
|
11
|
11
83551-MG1-000
Grommet, fr. cover
|
83551-MG1-000 |
— | ||
|
12
|
12
90152-MB0-000
Bolt, socket (10x30)
|
90152-MB0-000 |
— | ||
|
13
|
13
90302-425-830 Thread |
90302-425-830 |
from US $10.82 |
||
|
14
|
14
90506-425-830 Washer, lock |
90506-425-830 |
from US $4.74 |
||
|
15
|
15
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $21.62 |
||
|
16
|
16
91016-371-000 Bearing, head pipe |
91016-371-000 |
from US $37.94 |
||
|
17
|
17
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
