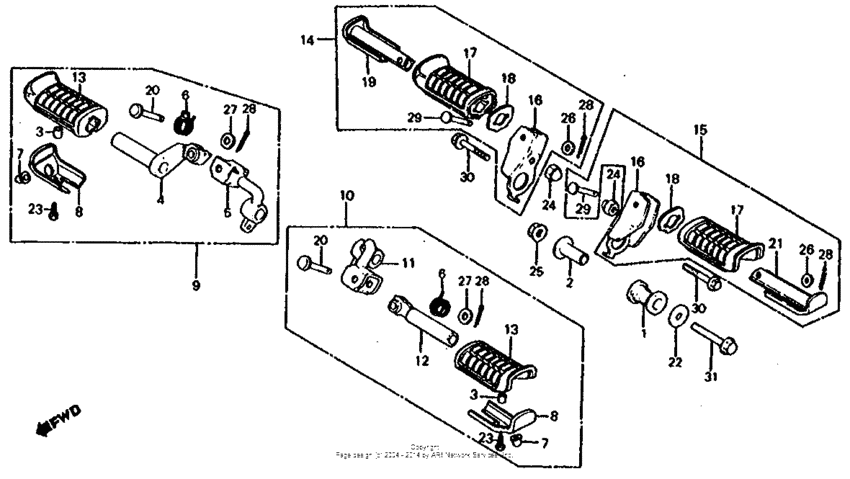

Step Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18421-438-000 Rubber |
18421-438-000 |
from US $6.96 |
||
|
2
|
2
18422-438-000 Collar |
18422-438-000 |
from US $5.37 |
||
|
3
|
3
40515-413-000 Collar, chain case |
40515-413-000 |
from US $2.59 |
||
|
4
|
4
50612-MG1-000
Bar, r. step
|
50612-MG1-000 |
— | ||
|
5
|
5
50615-461-000
Bar, r. step
|
50615-461-000 |
— | ||
|
6
|
6
50617-438-000
Spg.,step return
|
50617-438-000 |
— | ||
|
7
|
7
50618-MB1-000 Slider, step |
50618-MB1-000 |
US $5.93 |
||
|
8
|
8
50619-MB1-000
Stopper, step rubber
|
50619-MB1-000 |
— | ||
|
9
|
9
50630-MG1-000
Step assy.,r.main
|
50630-MG1-000 |
— | ||
|
10
|
10
50640-MG1-000
Step assy., l.
|
50640-MG1-000 |
— | ||
|
11
|
11
50641-461-000
Bar, l. step
|
50641-461-000 |
— | ||
|
12
|
12
50645-MG1-000
Bar, l. step
|
50645-MG1-000 |
— | ||
|
13
|
13
50661-MB1-000
Rubber, main step
|
50661-MB1-000 |
— | ||
|
14
|
14
50700-MG1-000
Step, r. pillion
|
50700-MG1-000 |
— | ||
|
15
|
15
50705-MG1-000
Step, l. pillion
|
50705-MG1-000 |
— | ||
|
16
|
16
50711-MG1-000
Brkt,pillion step
|
50711-MG1-000 |
— | ||
|
17
|
17
50713-MB1-000 Rubber, pillion step |
50713-MB1-000 |
from US $9.62 |
||
|
18
|
18
50714-MB1-000 Washer, pillion step |
50714-MB1-000 |
from US $3.48 |
||
|
19
|
19
50715-MG1-000
Bar,r.p.step
|
50715-MG1-000 |
— | ||
|
20
|
20
50716-445-000
Pin,step joint
|
50716-445-000 |
— | ||
|
21
|
21
50718-MG1-000
Bar, l. pillion step
|
50718-MG1-000 |
— | ||
|
22
|
22
90557-461-000 Washer, special, 10mm |
90557-461-000 |
US $4.49 |
||
|
23
|
23
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
24
|
24
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
25
|
25
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
29
|
29
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
30
|
30
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
|
31
|
31
95701-100-500-0 BoltFLANGE, 10X50 |
95701-100-500-0 |
from US $0.93 |
