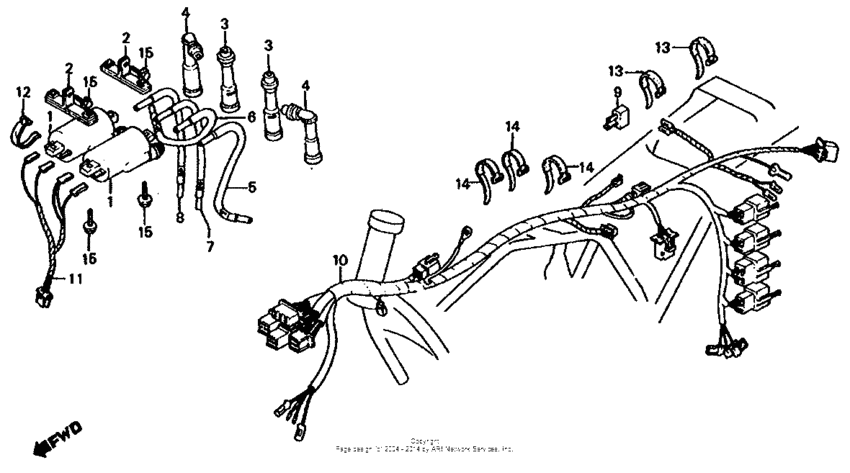

Wire harness + ignition coil Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-422-013 Coil,ignition |
30500-422-013 |
from US $140.80 |
||
|
2
|
2
30501-MA4-670
Stay,ign .coil
|
30501-MA4-670 |
— | ||
|
3
|
3
30700-MC8-000 Cap,noise supr. |
30700-MC8-000 |
from US $28.15 |
||
|
4
|
4
30700-MW3-000 Cap assy. |
30700-MW3-000 |
from US $13.55 |
||
|
5
|
5
30750-MA6-P00 Wire, ignition |
30750-MA6-P00 |
US $13.62 |
||
|
6
|
6
30750-MA0-P00
Wire, ignition
|
30750-MA0-P00 |
— | ||
|
7
|
7
30750-MA6-P00 Wire, ignition |
30750-MA6-P00 |
US $13.62 |
||
|
8
|
8
30750-MA6-P00 Wire, ignition |
30750-MA6-P00 |
US $13.62 |
||
|
9
|
9
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
9
|
9
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
10
|
10
32100-MG1-000
Wire harness
|
32100-MG1-000 |
— | ||
|
11
|
11
32103-438-660
Sub harnes,ign
|
32103-438-660 |
— | ||
|
12
|
12
32161-MA4-670
Band, cable
|
32161-MA4-670 |
— | ||
|
13
|
13
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
14
|
14
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
15
|
15
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
15
|
15
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
15
|
15
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
