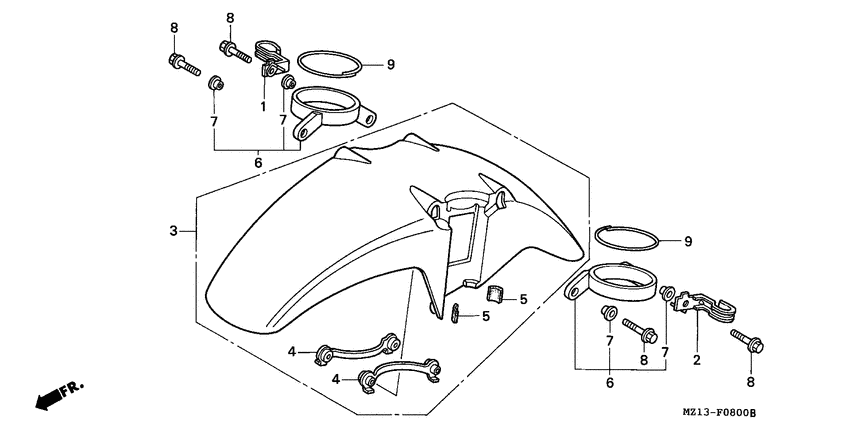

Front fender Diagram Honda CB1000 CB1000F
- Year
- 1993
- Model code
- CB1000FP
- Sales region
- Germany
- Frame
- SC302000028 - SC302002431
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45156-MZ1-000 Clamper comp,r fr |
45156-MZ1-000 |
US $12.53 |
||
|
2
|
2
45157-MZ1-000 Clamper comp,l fr |
45157-MZ1-000 |
US $12.53 |
||
|
3
|
3
61100-MZ1-000ZA
Fender comp.*nh1*
|
61100-MZ1-000ZA |
— | ||
|
3
|
3
61100-MZ1-000ZC Fender co*nh341p* |
61100-MZ1-000ZC |
US $242.08 |
||
|
4
|
4
61101-MZ1-000 Plate,fr.fender |
61101-MZ1-000 |
US $13.96 |
||
|
5
|
5
61102-MZ1-300 Rubber, fr. fender |
61102-MZ1-300 |
from US $1.22 |
||
|
6
|
6
61105-MR7-010
Stay, fr.
|
61105-MR7-010 |
— | ||
|
7
|
7
61107-MR7-000
Collar (6.5)
|
61107-MR7-000 |
— | ||
|
8
|
8
90134-MR7-000 Bolt, flange (6x18) |
90134-MR7-000 |
US $2.31 |
||
|
9
|
9
90605-MR7-000 Ring, snap |
90605-MR7-000 |
US $2.86 |
