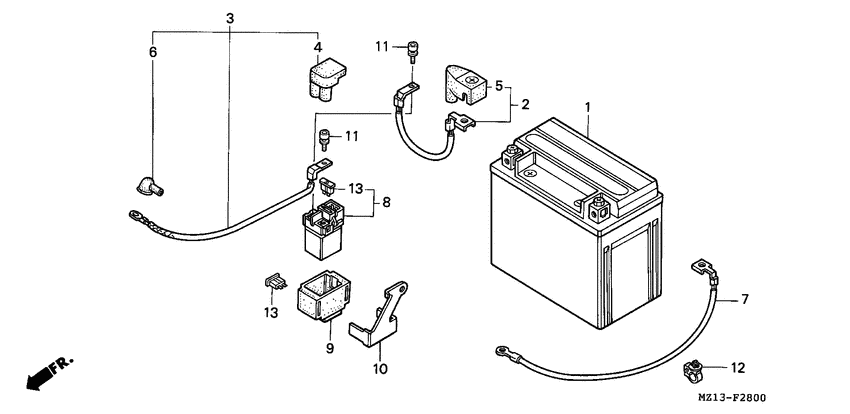

Battery Diagram Honda CB1000 CB1000F
- Year
- 1996
- Model code
- CB1000FT
- Sales region
- England
- Frame
- JH2SC30A*TM000001 - JH2SC30A*TM099999
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-KM1-837 Battery (ytx12-bs) |
31500-KM1-837 |
US $97.90 |
||
| replacement | |||||
|
1
|
1
31500-HF1-678AH Battery (ytx12-bs) |
31500-HF1-678AH |
from US $128.45 |
||
|
2
|
2
32401-MZ1-000 Cable,start bat. |
32401-MZ1-000 |
US $30.84 |
||
|
3
|
3
32402-MZ1-000 Cable start motor |
32402-MZ1-000 |
US $25.76 |
||
|
4
|
4
32406-MT4-000 Cover |
32406-MT4-000 |
US $5.97 |
||
| replacement | |||||
|
4
|
4
32406-MT4-010 Cover |
32406-MT4-010 |
from US $5.92 |
||
|
5
|
5
32411-MK3-300
Cover
|
32411-MK3-300 |
— | ||
| replacement | |||||
|
5
|
5
32412-751-A30
Cover, battery terminal
|
32412-751-A30 |
— | ||
|
6
|
6
32411-253-000 Cover, starter motor terminal |
32411-253-000 |
from US $4.29 |
||
| replacement | |||||
|
6
|
6
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
7
|
7
32601-MZ1-000 Cable,batt earth |
32601-MZ1-000 |
US $29.99 |
||
|
8
|
8
35850-MR5-007 Switch assy |
35850-MR5-007 |
from US $54.81 |
||
|
9
|
9
35856-KBH-000 Rubber |
35856-KBH-000 |
from US $6.66 |
||
|
10
|
10
50401-MZ1-000 Stay,starter mag. |
50401-MZ1-000 |
US $14.67 |
||
|
11
|
11
90111-MR5-000 Bolt, socket (5x9) |
90111-MR5-000 |
from US $1.92 |
||
|
12
|
12
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
13
|
13
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
