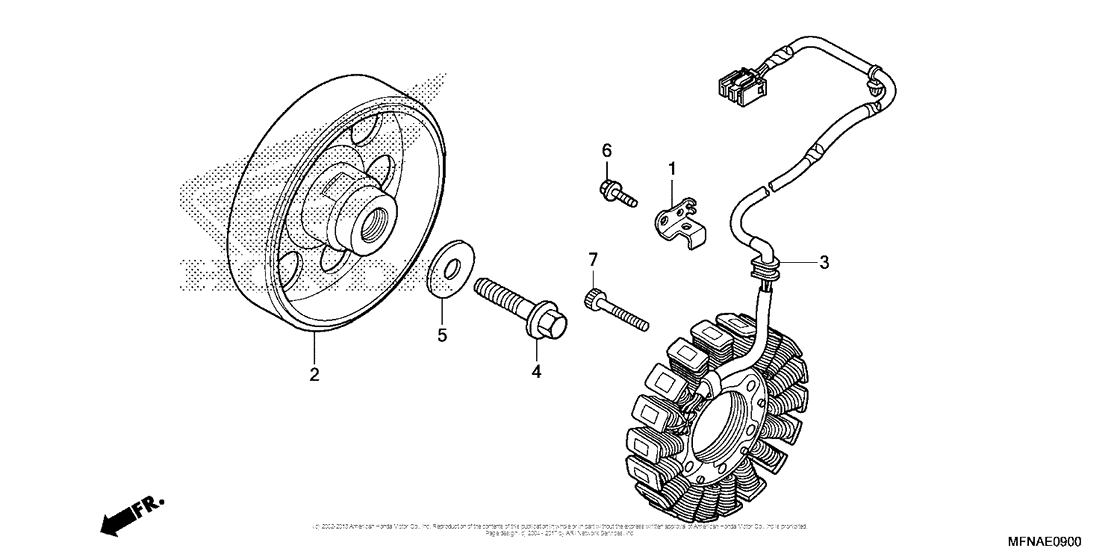

Generator Diagram Honda CB1000 CB1000R
- Year
- 2015
- Model code
- CB1000R 4AC
- Sales region
- USA
- Frame
- ZDCSC601 - FF220001
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11333-MEL-000 Clamp |
11333-MEL-000 |
from US $4.44 |
||
|
2
|
2
31110-MFN-D61 Flywheel |
31110-MFN-D61 |
from US $350.60 |
||
|
3
|
3
31120-MFN-D61 Stator |
31120-MFN-D61 |
from US $361.28 |
||
|
4
|
4
90003-MN4-000 Bolt, flange, 10x35 |
90003-MN4-000 |
from US $4.04 |
||
|
5
|
5
90405-MCA-780 Washer (10.5x27) |
90405-MCA-780 |
from US $4.59 |
||
|
6
|
6
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
7
|
7
96600-0602800 Bolt, socket (6x28) |
96600-0602800 |
from US $0.74 |
