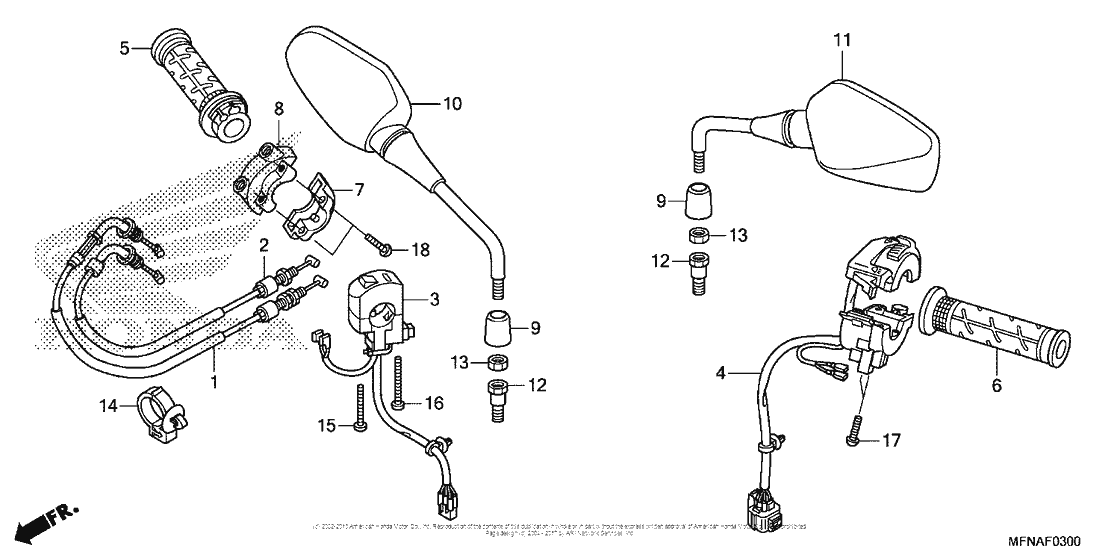

Switch + Cable + Mirror Diagram Honda CB1000 CB1000R
- Year
- 2016
- Model code
- CB1000R 4AC
- Sales region
- USA
- Frame
- ZDCSC601 - GF225001
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MFN-D61 Cable A, Throttle |
17910-MFN-D61 |
from US $27.34 |
||
|
2
|
2
17920-MFN-B02 Cable B, Throttle |
17920-MFN-B02 |
from US $27.34 |
||
|
3
|
3
35130-MFN-D01 Switch, starter stop |
35130-MFN-D01 |
US $57.39 |
||
|
4
|
4
35200-MFN-L61
Switch, turn signal
|
35200-MFN-L61 |
— | ||
|
5
|
5
53140-MGS-305 Grip, throttle |
53140-MGS-305 |
US $29.22 |
||
| replacement | |||||
|
5
|
5
53140-MGS-D30 Grip, throttle |
53140-MGS-D30 |
from US $28.70 |
||
|
6
|
6
53150-MGS-305 Grip, l. handle |
53150-MGS-305 |
US $12.50 |
||
| replacement | |||||
|
6
|
6
53150-MGS-D30 Grip, l. handle |
53150-MGS-D30 |
from US $13.32 |
||
|
7
|
7
53167-MV4-000 HOUSING, THROTTLE (UPPER) |
53167-MV4-000 |
from US $21.08 |
||
|
8
|
8
53168-MV4-000 HOUSING, THROTTLE (LOWER) |
53168-MV4-000 |
from US $25.98 |
||
|
9
|
9
88130-MFG-D00 Cover, lock nut |
88130-MFG-D00 |
from US $2.52 |
||
|
10
|
10
88210-MFN-305 Mirror, r. back |
88210-MFN-305 |
US $56.10 |
||
|
11
|
11
88220-MFN-305 Mirror, l. back |
88220-MFN-305 |
US $56.10 |
||
|
12
|
12
90130-MGS-D31 Bolt, adapter (10mm) |
90130-MGS-D31 |
from US $6.44 |
||
|
13
|
13
90310-MGS-D31 Nut, hex. (10mm) |
90310-MGS-D31 |
from US $2.12 |
||
|
14
|
14
90652-MFG-D01 Clamp, harness |
90652-MFG-D01 |
from US $4.37 |
||
|
15
|
15
93500-040320G Screw, pan, 4x32 |
93500-040320G |
from US $0.37 |
||
|
16
|
16
93500-040450G Screw, pan (4x45) |
93500-040450G |
from US $0.47 |
||
|
17
|
17
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
18
|
18
93500-050220G Screw, pan (5x22) |
93500-050220G |
from US $0.44 |
||
