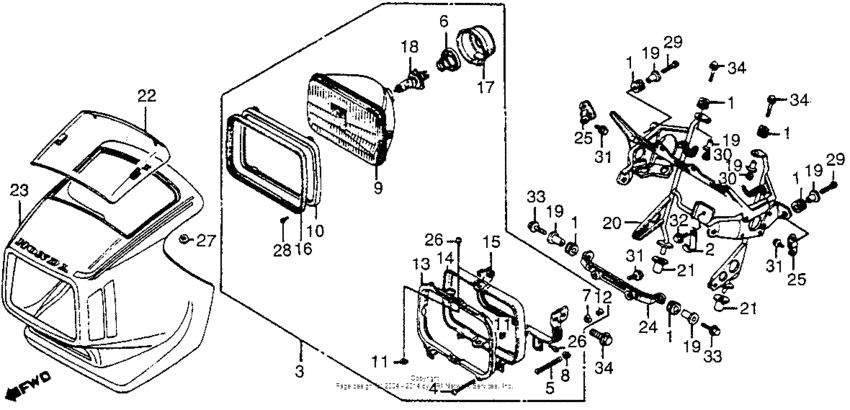

Headlight Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1100F A
- Sales region
- USA
- Frame
- JH2SC110*DM000001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $3.77 |
||
|
2
|
2
32901-MA1-000 Clip, sub cord |
32901-MA1-000 |
from US $5.18 |
||
|
3
|
3
33100-MG5-671
Headlight assy
|
33100-MG5-671 |
— | ||
|
4
|
4
33103-MG2-671 Screw, beam adj. |
33103-MG2-671 |
from US $3.11 |
||
|
5
|
5
33108-MB0-003
Spg.,beam adj
|
33108-MB0-003 |
— | ||
|
6
|
6
33114-MC5-003
Holder,head light
|
33114-MC5-003 |
— | ||
|
7
|
7
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
8
|
8
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
9
|
9
33120-MB0-771
Headlight unit
|
33120-MB0-771 |
— | ||
|
10
|
10
33121-MC5-003
Ring,retaining
|
33121-MC5-003 |
— | ||
|
11
|
11
33128-438-841 Nut,unit holder |
33128-438-841 |
US $3.11 |
||
|
12
|
12
33136-426-830 Cover, screw |
33136-426-830 |
from US $1.92 |
||
|
13
|
13
33153-MC5-003
Ring,a.mounting
|
33153-MC5-003 |
— | ||
|
14
|
14
33154-MC5-003
Ring,b.mounting
|
33154-MC5-003 |
— | ||
|
15
|
15
33156-MC5-003
Brkt,head light
|
33156-MC5-003 |
— | ||
|
16
|
16
33171-MC5-000
Seal rub.hd/lt
|
33171-MC5-000 |
— | ||
|
17
|
17
33112-MM9-013 Cover, rubber |
33112-MM9-013 |
from US $12.19 |
||
|
18
|
18
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
18
|
18
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
19
|
19
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.33 |
||
|
20
|
20
61311-MG5-670
Brkt,hdlt.case
|
61311-MG5-670 |
— | ||
|
21
|
21
61313-422-000 Grommet b, headlight |
61313-422-000 |
from US $6.17 |
||
|
22
|
22
64100-MC5-610
Cover,meter
|
64100-MC5-610 |
— | ||
|
23
|
23
64200-MG5-670ZA
Cover,*r-125c-a*
|
64200-MG5-670ZA |
— | ||
|
23
|
23
64200-MG5-670ZB
Cover,*pb-126c-a*
|
64200-MG5-670ZB |
— | ||
|
24
|
24
64511-MG5-670
Stay b,hdlt.cover
|
64511-MG5-670 |
— | ||
|
25
|
25
64513-MC5-000
Stay c,l.h/light
|
64513-MC5-000 |
— | ||
|
26
|
26
90150-MC5-003
Screw,pan,5x9
|
90150-MC5-003 |
— | ||
|
27
|
27
90313-329-000 Nut b, push, 3mm |
90313-329-000 |
from US $4.62 |
||
|
28
|
28
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
29
|
29
93500-060-200-G ScrewPAN, 6X20 |
93500-060-200-G |
from US $0.44 |
||
|
30
|
30
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
31
|
31
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
32
|
32
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
33
|
33
95701-060-200-7 BoltFLANGE, 6X20 |
95701-060-200-7 |
from US $0.52 |
||
|
34
|
34
95701-0603207 Bolt, flange, 6x32 |
95701-0603207 |
from US $0.59 |
||
