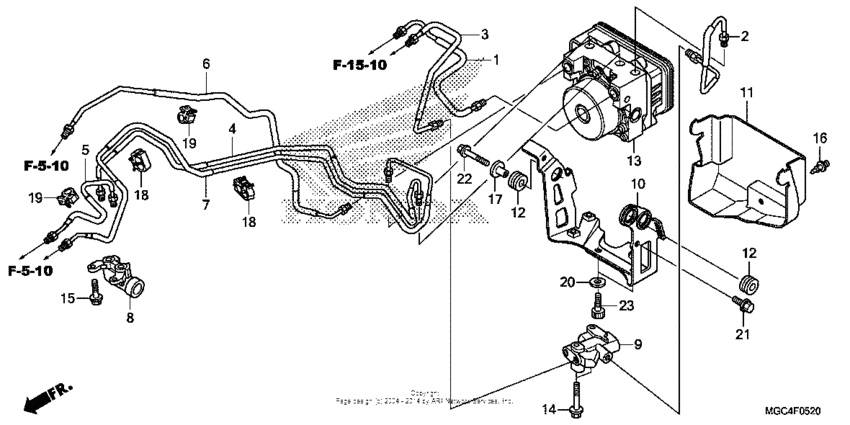

Abs modulator Diagram Honda CB1100
- Year
- 2013
- Model code
- CB1100A AC
- Sales region
- USA
- Frame
- JH2SC655*DK000001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43311-MGC-750 New Genuine Part |
43311-MGC-750 |
from US $12.03 |
||
|
2
|
2
43312-MGC-750 New Genuine Part |
43312-MGC-750 |
from US $9.70 |
||
|
3
|
3
43313-MGC-750 New Genuine Part |
43313-MGC-750 |
from US $8.32 |
||
|
4
|
4
43321-MGC-750 New Genuine Part |
43321-MGC-750 |
from US $24.23 |
||
|
5
|
5
43322-MGC-750 New Genuine Part |
43322-MGC-750 |
from US $11.10 |
||
|
6
|
6
45126-MGC-750 New Genuine Part |
45126-MGC-750 |
from US $20.99 |
||
|
7
|
7
45127-MGC-750 New Genuine Part |
45127-MGC-750 |
from US $31.54 |
||
|
8
|
8
46300-MFG-D21 Valve assy., delay |
46300-MFG-D21 |
US $188.58 |
||
|
9
|
9
46400-MER-R81 Valve assy.PROPORTIONING CONTROL |
46400-MER-R81 |
from US $102 |
||
|
10
|
10
50210-MGC-750 New Genuine Part |
50210-MGC-750 |
from US $79.56 |
||
|
11
|
11
50220-MGC-750 New Genuine Part |
50220-MGC-750 |
from US $19.58 |
||
|
12
|
12
50329-HA7-670 Rubber, battery box mounting |
50329-HA7-670 |
from US $1.82 |
||
|
13
|
13
57110-MGC-751 New Genuine Part |
57110-MGC-751 |
from US $1,151.92 |
||
|
14
|
14
90102-GFH-920 BoltFLANGE, 6X40 |
90102-GFH-920 |
from US $1.78 |
||
|
15
|
15
90105-KEM-900 Bolt,flange,6x16 |
90105-KEM-900 |
from US $1.26 |
||
|
16
|
16
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.07 |
||
|
17
|
17
90551-MG7-000 Collar8.8X11 |
90551-MG7-000 |
from US $3.40 |
||
|
18
|
18
90661-MEW-921 Clamp (7.0x2) |
90661-MEW-921 |
from US $3.18 |
||
|
19
|
19
90690-GHB-641 Clip, cable, 10mm |
90690-GHB-641 |
from US $1.95 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
22
|
22
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
|
23
|
23
96600-0601400 Bolt, socket (6x14) |
96600-0601400 |
from US $0.59 |
