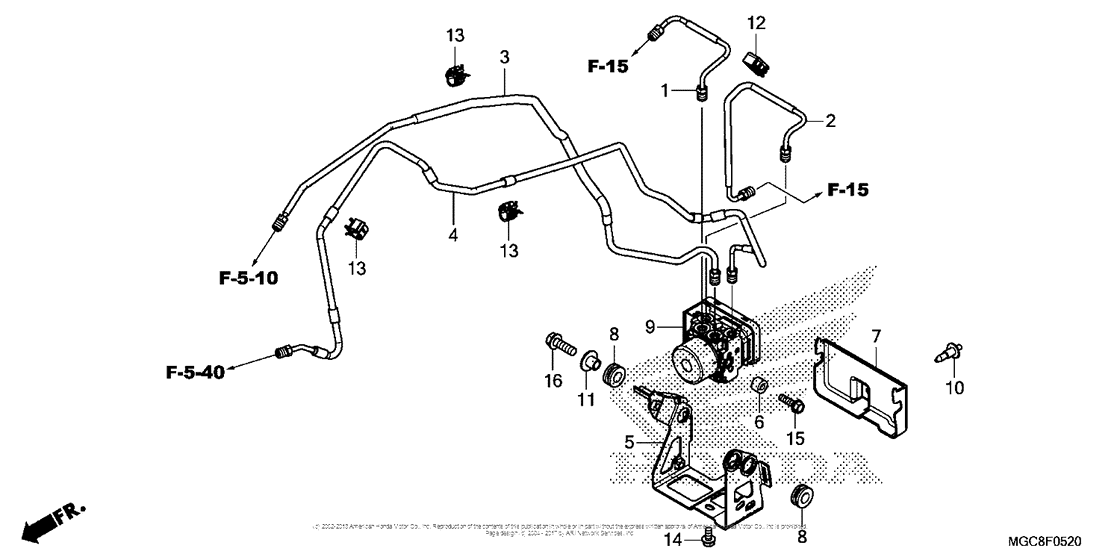

Abs Modulator Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43311-MGC-JB0 PIPE COMP A, RR. |
43311-MGC-JB0 |
from US $9.32 |
||
|
2
|
2
43312-MGC-JB0 PIPE COMP B, RR. |
43312-MGC-JB0 |
from US $13.02 |
||
|
3
|
3
45126-MGC-JB0 PIPE COMP A, FR. |
45126-MGC-JB0 |
from US $20.01 |
||
|
4
|
4
45127-MGC-JB0 PIPE COMP B, FR. |
45127-MGC-JB0 |
from US $29.99 |
||
|
5
|
5
50210-MGC-JB0 BRACKET, MODULATOR |
50210-MGC-JB0 |
from US $69.13 |
||
|
6
|
6
50211-MGC-JB0 COLLAR, MODULATER |
50211-MGC-JB0 |
from US $3.85 |
||
|
7
|
7
50220-MGC-N20 Splash guard, rr |
50220-MGC-N20 |
from US $13.62 |
||
|
8
|
8
50329-HA7-670 Rubber, battery box mounting |
50329-HA7-670 |
from US $1.80 |
||
|
9
|
9
57110-MGC-JB2 MODULATOR ASSY. |
57110-MGC-JB2 |
from US $1,227.79 |
||
|
10
|
10
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.02 |
||
|
11
|
11
90551-MG7-000 Collar8.8X11 |
90551-MG7-000 |
from US $3.40 |
||
|
12
|
12
90661-KVK-B11 Clip, brake pipe (6.9x2) |
90661-KVK-B11 |
from US $3.26 |
||
|
13
|
13
90690-GHB-641 Clip, cable, 10mm |
90690-GHB-641 |
from US $1.95 |
||
|
14
|
14
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
15
|
15
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
16
|
16
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
