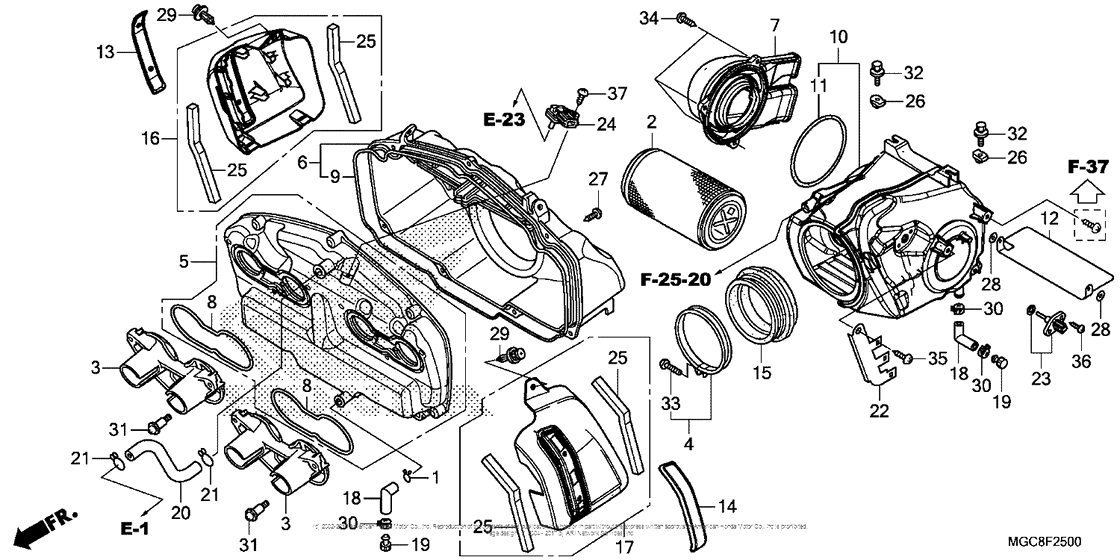

Air Cleaner Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15771-KV6-000 Clip, oil drain tube |
15771-KV6-000 |
from US $1.40 |
||
|
2
|
2
17210-MEJ-981 Element, air cleaner |
17210-MEJ-981 |
from US $54.49 |
||
|
3
|
3
17225-MGC-000 New Genuine Part |
17225-MGC-000 |
from US $13.87 |
||
|
4
|
4
17228-MEJ-003 Band,air/c conn |
17228-MEJ-003 |
from US $9.92 |
||
|
5
|
5
17230-MGC-000 New Genuine Part |
17230-MGC-000 |
from US $99.96 |
||
|
6
|
6
17231-MGC-000 New Genuine Part |
17231-MGC-000 |
from US $94.52 |
||
|
7
|
7
17235-MGC-JB0 DUCT COMP, AIR/C |
17235-MGC-JB0 |
from US $60.93 |
||
|
8
|
8
17237-MGC-000 New Genuine Part |
17237-MGC-000 |
from US $4.88 |
||
|
9
|
9
17238-MGC-000 New Genuine Part |
17238-MGC-000 |
from US $7.84 |
||
|
10
|
10
17240-MGC-010 CASE C, AIR/C |
17240-MGC-010 |
from US $87.31 |
||
|
11
|
11
17241-MEJ-003 Seal,air/c case |
17241-MEJ-003 |
from US $5.48 |
||
|
12
|
12
17246-MGC-000 New Genuine Part |
17246-MGC-000 |
from US $6.79 |
||
|
13
|
13
17251-MGC-JB0 PLATE, R. |
17251-MGC-JB0 |
from US $18.90 |
||
|
14
|
14
17252-MGC-JB0 PLATE, L. |
17252-MGC-JB0 |
from US $18.90 |
||
|
15
|
15
17260-MEJ-003 Tube,air/c conn. |
17260-MEJ-003 |
from US $21.22 |
||
|
16
|
16
17260-MGC-JB0 COVER COMP |
17260-MGC-JB0 |
from US $25.30 |
||
|
17
|
17
17265-MGC-JB0 COVER COMP |
17265-MGC-JB0 |
from US $25.30 |
||
|
18
|
18
17366-428-670 Tube a, drain |
17366-428-670 |
from US $5.33 |
||
|
19
|
19
17370-382-870 Plug, breather tube |
17370-382-870 |
from US $3.70 |
||
|
20
|
20
17542-MGC-000 New Genuine Part |
17542-MGC-000 |
from US $7.99 |
||
|
21
|
21
17554-MB0-000 Clip, breather tube |
17554-MB0-000 |
from US $2.66 |
||
|
22
|
22
32123-MGC-000 New Genuine Part |
32123-MGC-000 |
from US $5.71 |
||
|
23
|
23
37880-KWW-C01 Sensor, air temp |
37880-KWW-C01 |
from US $35.56 |
||
|
24
|
24
46401-TM8-A01 Sensor aMASTER POWER PRESSURE |
46401-TM8-A01 |
from US $95.20 |
||
|
25
|
25
50132-MFJ-J00 Mat a, pivot bracket |
50132-MFJ-J00 |
from US $2.96 |
||
|
26
|
26
84601-HA7-670 Nut, fender setting |
84601-HA7-670 |
from US $4.82 |
||
|
27
|
27
90105-MFJ-D00 Screw, tap (4x18) |
90105-MFJ-D00 |
from US $1.42 |
||
|
28
|
28
90313-172-000 Nut, speed, 4mm |
90313-172-000 |
from US $1.86 |
||
|
29
|
29
90683-GR1-003 Clip, body cover |
90683-GR1-003 |
from US $1.46 |
||
|
30
|
30
91406-MS8-000 Clamp, tube (d14.5) |
91406-MS8-000 |
from US $3.11 |
||
|
31
|
31
91508-MGP-D00 New Genuine Part |
91508-MGP-D00 |
from US $2.89 |
||
|
32
|
32
93404-0601407 Bolt-washer (6x14) |
93404-0601407 |
from US $0.52 |
||
|
33
|
33
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
34
|
34
93903-25580 ScrewTAPPING, 5X25 |
93903-25580 |
from US $0.44 |
||
|
35
|
35
93903-26280 ScrewTAPPING, 6X16 |
93903-26280 |
US $0.44 |
||
|
36
|
36
93911-25420 ScrewTAPPING, 5X16 |
93911-25420 |
from US $0.37 |
||
|
37
|
37
93911-25680 ScrewTAPPING, 5X25 (PO) |
93911-25680 |
from US $0.44 |
