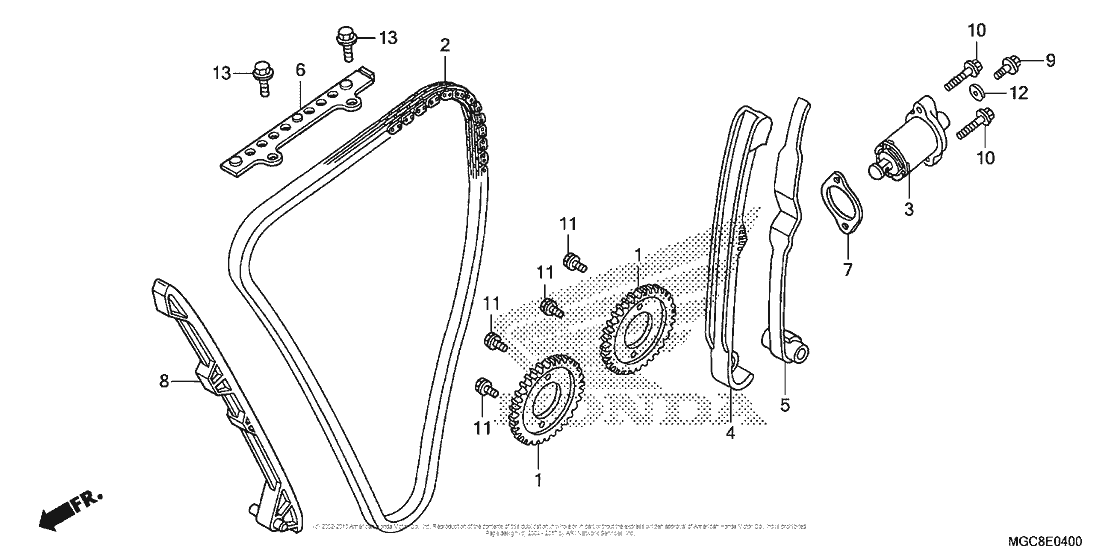

Cam Chain + Tensioner Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-MGC-000 New Genuine Part |
14321-MGC-000 |
from US $52.39 |
||
|
2
|
2
14401-MAZ-003 Chain,cam |
14401-MAZ-003 |
from US $71.03 |
||
|
3
|
3
14500-MAZ-000 Lifter, tensioner |
14500-MAZ-000 |
from US $43.52 |
||
|
4
|
4
14511-MAZ-300 Shoe,cam chain te |
14511-MAZ-300 |
from US $21.35 |
||
|
5
|
5
14520-MAZ-000 Base comp,cam cha |
14520-MAZ-000 |
from US $42.43 |
||
|
6
|
6
14546-MGC-000 New Genuine Part |
14546-MGC-000 |
from US $27.60 |
||
|
7
|
7
14560-MY5-851 Gasket |
14560-MY5-851 |
from US $4.59 |
||
|
8
|
8
14620-MAZ-000 Guide a,cam chain |
14620-MAZ-000 |
from US $41.48 |
||
|
9
|
9
90004-GHB-600 Bolt, flange (6x10) |
90004-GHB-600 |
from US $2.07 |
||
|
10
|
10
90004-GHB-670 Bolt, flange, 6x25 (nshf) |
90004-GHB-670 |
from US $2.22 |
||
|
11
|
11
90082-HA0-000 Bolt (7x10.5) |
90082-HA0-000 |
from US $2.59 |
||
|
12
|
12
90442-397-000 WasherSEALING, 6MM |
90442-397-000 |
from US $2.16 |
||
|
13
|
13
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
