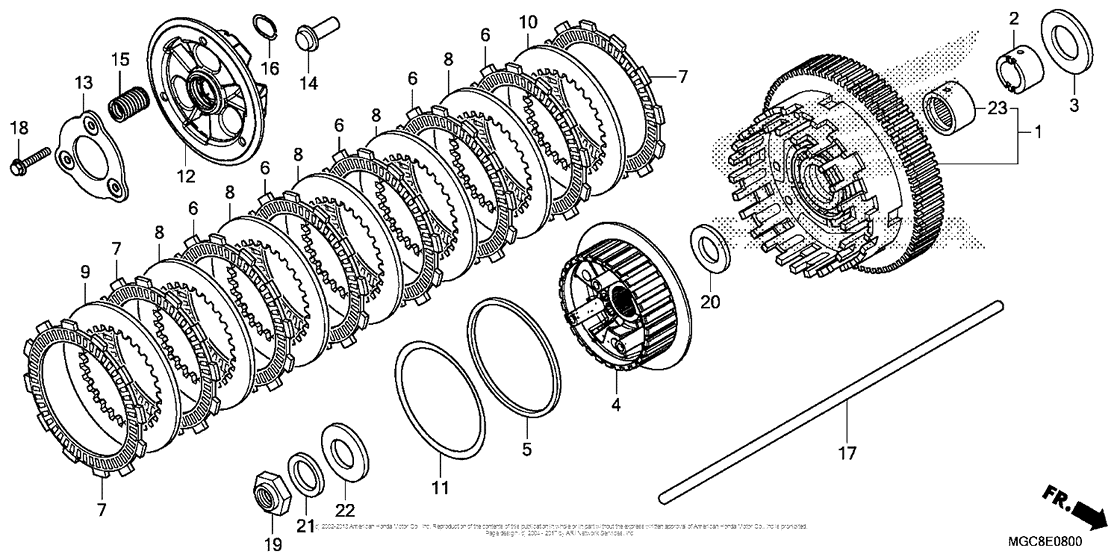

Clutch Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-MEJ-000 Outer comp,clutch |
22100-MEJ-000 |
from US $278.71 |
||
|
2
|
2
22116-MS2-610 Guide, clutch |
22116-MS2-610 |
from US $22.03 |
||
|
3
|
3
22117-MEJ-610 Collar, distance |
22117-MEJ-610 |
from US $10.76 |
||
|
4
|
4
22121-MJP-G51 CENTER, CLUTCH |
22121-MJP-G51 |
from US $85 |
||
|
5
|
5
22125-HP6-A00 Seat, judder spring |
22125-HP6-A00 |
from US $4.29 |
||
|
6
|
6
22201-MEL-000 Disk, cl friction |
22201-MEL-000 |
from US $11.61 |
||
|
7
|
7
22202-MJP-G51 DISK B, CL FRICTION |
22202-MJP-G51 |
from US $14.69 |
||
|
8
|
8
22321-GHB-811 Plate, clutch |
22321-GHB-811 |
from US $8.48 |
||
|
9
|
9
22322-MJP-G51 Plate, clutch |
22322-MJP-G51 |
from US $9.43 |
||
|
10
|
10
22322-MN4-000 Plate b, clutch |
22322-MN4-000 |
from US $9.77 |
||
|
11
|
11
22325-MJP-G51 SPRING, JUDDER |
22325-MJP-G51 |
from US $33.42 |
||
|
12
|
12
22350-MJP-G51 PLATE, CLU PRESS |
22350-MJP-G51 |
from US $50.13 |
||
|
13
|
13
22361-MJP-G51 PLATE, SETTING |
22361-MJP-G51 |
from US $22.03 |
||
|
14
|
14
22366-MAZ-000 Piece, clutch joint |
22366-MAZ-000 |
from US $10.80 |
||
|
15
|
15
22401-MJP-G51 SPRING, CLUTCH |
22401-MJP-G51 |
from US $4.97 |
||
|
16
|
16
22425-MJP-G51 SEAT, CLUTCH SPRING |
22425-MJP-G51 |
from US $8.29 |
||
|
17
|
17
22850-MGC-JB0 ROD, CLUTCH LIFTER |
22850-MGC-JB0 |
from US $14.96 |
||
|
18
|
18
90050-MJP-G51 BOLT, FLANGE (6X35) |
90050-MJP-G51 |
from US $1.70 |
||
|
19
|
19
90231-MCH-000 Nut, lock (25mm) |
90231-MCH-000 |
from US $5.69 |
||
|
20
|
20
90401-MS2-610 Washer (28.2x56x2) |
90401-MS2-610 |
from US $7.93 |
||
|
21
|
21
90432-MM8-003 Washer (25mm) |
90432-MM8-003 |
from US $4.66 |
||
|
22
|
22
90451-VM0-000 Washer, thrust, 25x40x2 |
90451-VM0-000 |
from US $3.62 |
||
|
23
|
23
91024-MM5-003 Bearing (40x47x31) |
91024-MM5-003 |
from US $31.01 |
