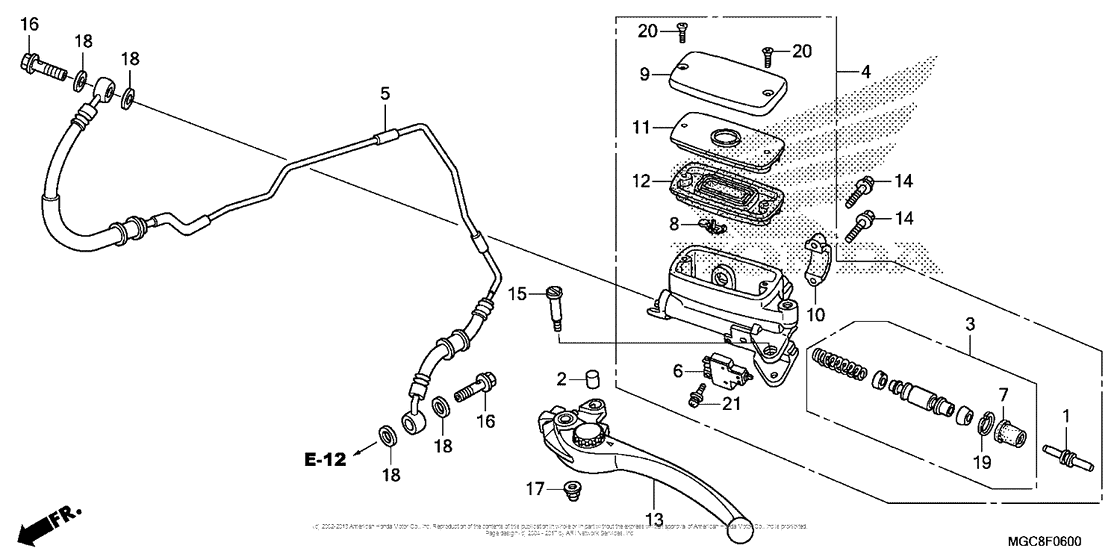

Clutch Master Cylinder Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22884-MAT-E01 Rod, push |
22884-MAT-E01 |
from US $17.14 |
||
|
2
|
2
22885-MB0-006 Bush |
22885-MB0-006 |
from US $5.27 |
||
|
3
|
3
22886-MAT-E01 Piston set |
22886-MAT-E01 |
from US $56.44 |
||
|
4
|
4
22890-MGC-JB1 SUB-ASSY. |
22890-MGC-JB1 |
US $405.89 |
||
|
5
|
5
22900-MGC-JB1 PIPE, COMP CLUTCH |
22900-MGC-JB1 |
from US $133.28 |
||
|
6
|
6
35330-MB0-003 Switch assy., clutch |
35330-MB0-003 |
from US $10.21 |
||
|
7
|
7
45504-MAT-E01 Boot |
45504-MAT-E01 |
from US $8.29 |
||
|
8
|
8
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
9
|
9
45513-MZ8-R41 CapMASTER CYLINDER (NISSIN) |
45513-MZ8-R41 |
from US $18.50 |
||
|
10
|
10
45517-KR3-901 Holder |
45517-KR3-901 |
from US $10.95 |
||
|
11
|
11
45518-MM5-006 Plate, diaphragm |
45518-MM5-006 |
from US $8.79 |
||
|
12
|
12
45520-MM5-006 Diaphragm |
45520-MM5-006 |
from US $11.25 |
||
|
13
|
13
53180-MEJ-305 Lever, l. handle |
53180-MEJ-305 |
US $44.12 |
||
| replacement | |||||
|
13
|
13
53180-MEJ-016 LEVER ASSY L HAND |
53180-MEJ-016 |
from US $41.33 |
||
|
14
|
14
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
15
|
15
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
16
|
16
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
17
|
17
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
18
|
18
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
19
|
19
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
20
|
20
90158-MT7-000 Screw, flat (4x12) |
90158-MT7-000 |
from US $2.29 |
||
|
21
|
21
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
