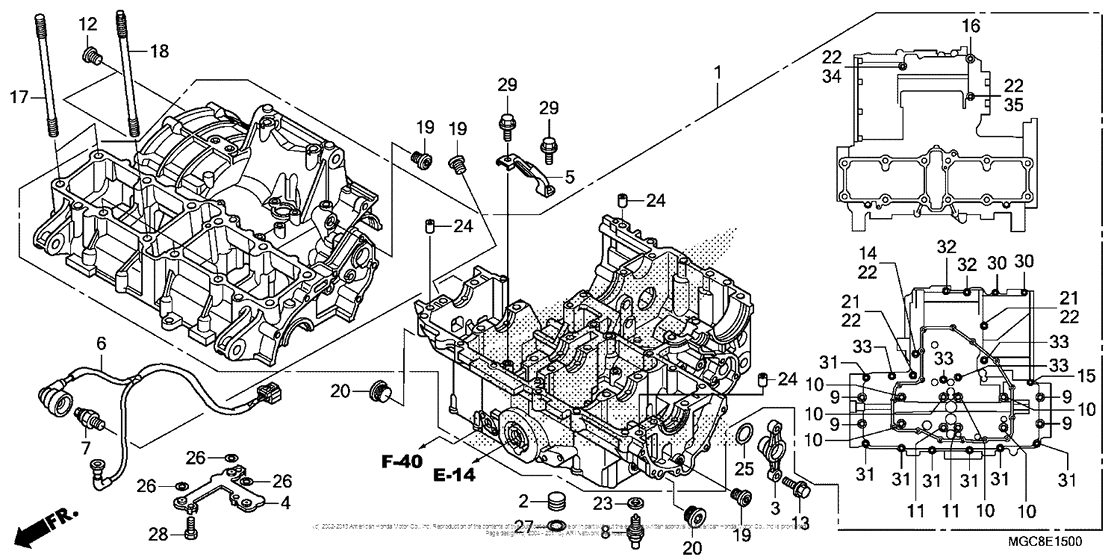

Crankcase Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-MGC-A40 Crankcase set |
11000-MGC-A40 |
from US $2,178.72 |
||
|
2
|
2
11208-MAZ-000 CollarMAIN GALLERY |
11208-MAZ-000 |
from US $4.07 |
||
|
3
|
3
11371-MGC-000 New Genuine Part |
11371-MGC-000 |
from US $25.78 |
||
|
4
|
4
12260-MGC-N20 Plate, oil passage |
12260-MGC-N20 |
from US $42.57 |
||
|
5
|
5
15160-MGC-000 New Genuine Part |
15160-MGC-000 |
from US $28.58 |
||
|
6
|
6
32101-MGC-000 New Genuine Part |
32101-MGC-000 |
from US $24.89 |
||
|
7
|
7
35500-MJ4-024 Switch, oil pressure |
35500-MJ4-024 |
from US $35.50 |
||
|
8
|
8
35600-HA0-003 Switch, neutral |
35600-HA0-003 |
from US $16.46 |
||
|
9
|
9
90001-MAZ-000 Bolt,flange 9x91 |
90001-MAZ-000 |
from US $5.18 |
||
|
10
|
10
90002-MAZ-000 Bolt,flange 9x131 |
90002-MAZ-000 |
from US $6.22 |
||
|
11
|
11
90003-MAZ-000 Bolt,flange 9x156 |
90003-MAZ-000 |
from US $7.25 |
||
|
12
|
12
90005-MAZ-000 Bolt, socket (10mm) |
90005-MAZ-000 |
from US $2.15 |
||
|
13
|
13
90006-GHB-660 Bolt, flange (6x22) |
90006-GHB-660 |
from US $2.15 |
||
|
14
|
14
90006-MM5-640 Bolt, flange (8x135) |
90006-MM5-640 |
from US $4.07 |
||
|
15
|
15
90011-MM5-640 Bolt, flange (6x93) |
90011-MM5-640 |
from US $3.92 |
||
|
16
|
16
90015-MM5-640 Bolt, flange (10x75) |
90015-MM5-640 |
from US $3.92 |
||
|
17
|
17
90031-MGC-000 New Genuine Part |
90031-MGC-000 |
from US $14.28 |
||
|
18
|
18
90032-MGC-000 New Genuine Part |
90032-MGC-000 |
from US $14.28 |
||
|
19
|
19
90042-MM5-000 Bolt, special (10mm) |
90042-MM5-000 |
from US $3.92 |
||
|
20
|
20
90048-ME5-000 Bolt, sealing (20mm) |
90048-ME5-000 |
from US $7.99 |
||
|
21
|
21
90069-MC7-000 Bolt, flange (8x115) |
90069-MC7-000 |
US $6.33 |
||
|
22
|
22
90441-ME9-000 Washer (8mm) |
90441-ME9-000 |
from US $2.10 |
||
|
23
|
23
90443-MJ6-000 Washer, neutral |
90443-MJ6-000 |
from US $1.63 |
||
|
24
|
24
90701-MV9-670 Pin, dowel (10x16) |
90701-MV9-670 |
from US $2.59 |
||
|
25
|
25
91302-MB0-013 O-ring (32.95x2.62) |
91302-MB0-013 |
from US $1.73 |
||
|
26
|
26
91302-MGC-003 New Genuine Part |
91302-MGC-003 |
from US $1.70 |
||
|
27
|
27
91305-MGC-003 New Genuine Part |
91305-MGC-003 |
from US $2.15 |
||
|
28
|
28
92101-06014-0A Bolt, hex., 6x14 |
92101-06014-0A |
from US $0.47 |
||
|
29
|
29
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
30
|
30
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
|
31
|
31
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
||
|
32
|
32
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
|
33
|
33
95701-0806000 Bolt, flange, 8x60 |
95701-0806000 |
from US $0.81 |
||
|
34
|
34
95701-0808000 Bolt, flange, 8x80 |
95701-0808000 |
from US $0.89 |
||
|
35
|
35
95701-0809500 Bolt, flange, 8x95 |
95701-0809500 |
from US $1.18 |
