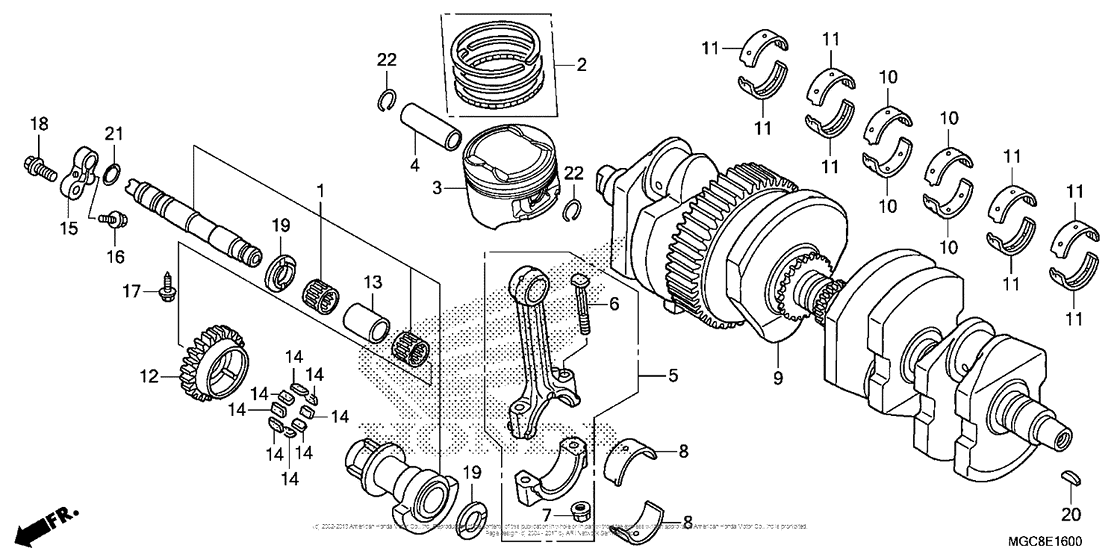

Crankshaft + Piston Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06130-MGC-305 New Genuine Part |
06130-MGC-305 |
from US $146.44 |
||
|
2
|
2
13011-MGC-000 RING SET PISTON ST |
13011-MGC-000 |
from US $42.43 |
||
|
2
|
2
13021-MGC-000 Ring set (0.25) |
13021-MGC-000 |
US $66.59 |
||
|
3
|
3
13101-MGC-000 PISTON STD |
13101-MGC-000 |
from US $75.48 |
||
|
3
|
3
13102-MGC-000 Piston (0.25) |
13102-MGC-000 |
US $123.95 |
||
|
4
|
4
13111-KCZ-000 Pin,piston |
13111-KCZ-000 |
from US $10.21 |
||
|
5
|
5
13210-MGC-000 New Genuine Part |
13210-MGC-000 |
from US $174.08 |
||
|
6
|
6
13213-MAT-003 Bolt, connecting rod |
13213-MAT-003 |
from US $5.33 |
||
|
7
|
7
13215-ML7-000 Nut, connecting rod |
13215-ML7-000 |
from US $4.44 |
||
|
8
|
8
13224-MGC-003 New Genuine Part |
13224-MGC-003 |
from US $10.66 |
||
|
8
|
8
13225-MGC-003 New Genuine Part |
13225-MGC-003 |
from US $10.66 |
||
|
8
|
8
13226-MGC-003 New Genuine Part |
13226-MGC-003 |
from US $11.41 |
||
|
9
|
9
13300-MGC-N20 Crankshaft |
13300-MGC-N20 |
from US $1,404.88 |
||
|
10
|
10
13311-MM5-003 Bearing a, main (Brown) |
13311-MM5-003 |
from US $10.21 |
||
|
10
|
10
13312-MM5-003 Brg b (14mm green) |
13312-MM5-003 |
from US $7.34 |
||
|
10
|
10
13313-MM5-003 Brg c (14mm yellow) |
13313-MM5-003 |
from US $7.34 |
||
|
10
|
10
13314-MM5-003 Brg d (14mm pink) |
13314-MM5-003 |
from US $7.34 |
||
|
11
|
11
13315-MJ0-010 Bearing a, main (17mm) (green) |
13315-MJ0-010 |
from US $7.49 |
||
|
11
|
11
13316-MJ0-010 Bearing b, main (17mm) (yellow) |
13316-MJ0-010 |
from US $7.49 |
||
|
11
|
11
13317-MJ0-010 Bearing c, main (17mm) (pink) |
13317-MJ0-010 |
from US $7.49 |
||
|
11
|
11
13318-MM5-004 Brg d, main (17mm) (Brown) |
13318-MM5-004 |
from US $7.49 |
||
|
12
|
12
13421-MGC-N21 Gear, balancer (23t) |
13421-MGC-N21 |
from US $49.78 |
||
|
13
|
13
13433-MM5-000 Collar, distance |
13433-MM5-000 |
from US $9.55 |
||
|
14
|
14
13435-MM5-000 Rubber, damper |
13435-MM5-000 |
from US $1.70 |
||
|
15
|
15
13436-MM5-000 Holder |
13436-MM5-000 |
from US $26.79 |
||
|
16
|
16
90002-MCZ-000 Bolt, flange (6x18) |
90002-MCZ-000 |
from US $1.11 |
||
|
17
|
17
90004-MM5-000 Bolt, special (6x18) |
90004-MM5-000 |
from US $1.70 |
||
|
18
|
18
90022-MFA-D00 Bolt, flange (8x25) |
90022-MFA-D00 |
from US $2.15 |
||
|
19
|
19
90457-MM5-000 Washer |
90457-MM5-000 |
from US $3.11 |
||
|
20
|
20
90741-MAZ-000 Key,special woodr |
90741-MAZ-000 |
from US $2.74 |
||
|
21
|
21
91306-329-000 O-ring (16x1.9) |
91306-329-000 |
from US $3.26 |
||
|
22
|
22
94601-17000 ClipPISTON PIN, 17MM |
94601-17000 |
from US $0.44 |
