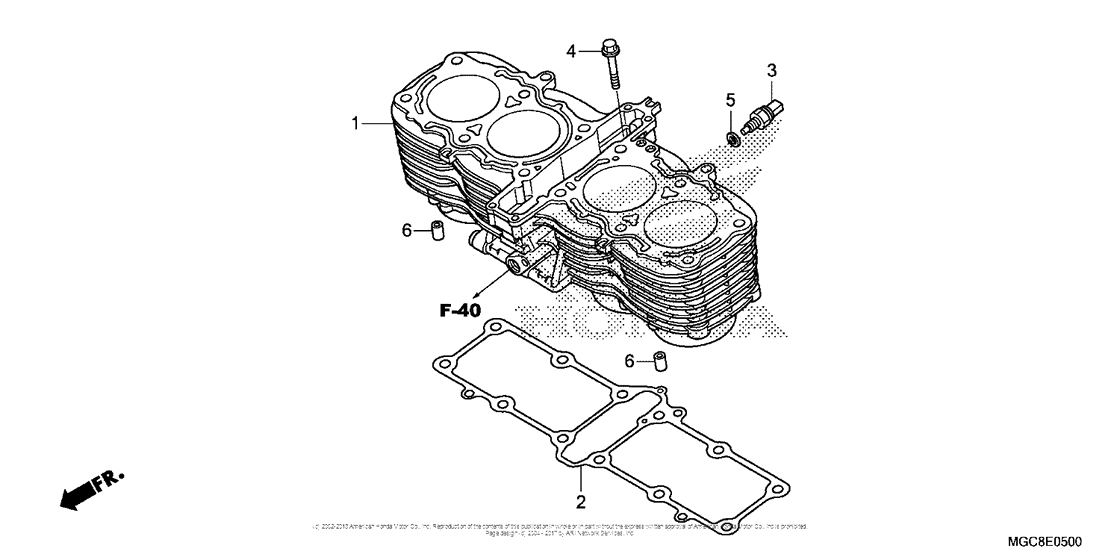

Cylinder Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-MGC-921 CYLINDER |
12100-MGC-921 |
from US $1,380.40 |
||
|
2
|
2
12191-MGC-003 New Genuine Part |
12191-MGC-003 |
from US $37.13 |
||
|
3
|
3
37750-KPH-701 Sensor assy |
37750-KPH-701 |
from US $42.84 |
||
|
4
|
4
90004-GHB-700 Bolt, flange (6x35) |
90004-GHB-700 |
from US $1.42 |
||
|
5
|
5
90443-MB0-000 Washer (10mm) |
90443-MB0-000 |
from US $1.35 |
||
|
6
|
6
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
