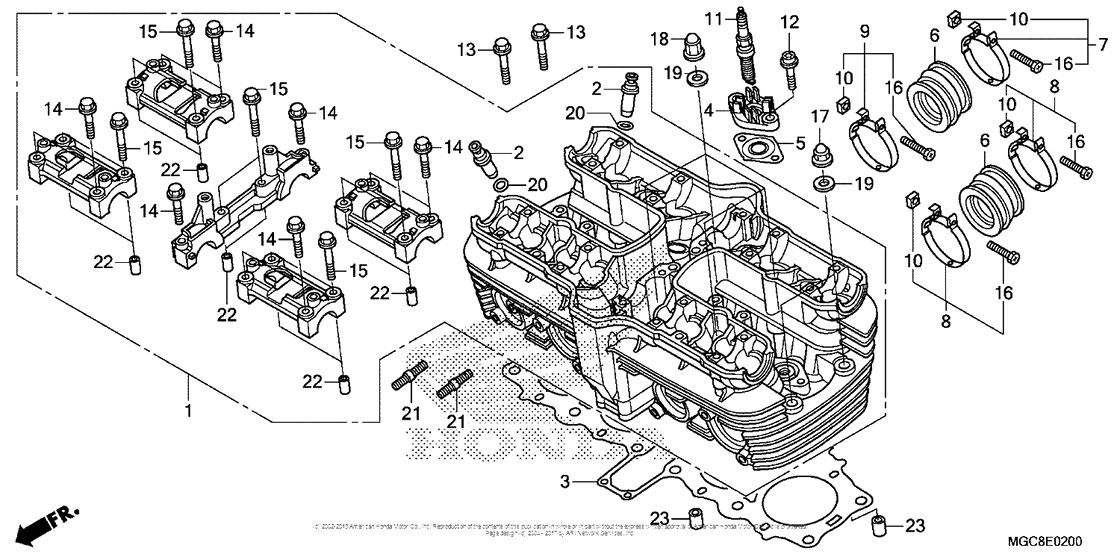

Cylinder Head Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12010-MGC-000 New Genuine Part |
12010-MGC-000 |
from US $1,906.72 |
||
|
2
|
2
12204-MGC-305 New Genuine Part |
12204-MGC-305 |
from US $14.50 |
||
|
3
|
3
12251-MGC-003 GASKET, CYLINDER HEAD |
12251-MGC-003 |
from US $77.52 |
||
|
4
|
4
12511-MGC-000 New Genuine Part |
12511-MGC-000 |
from US $19.18 |
||
|
5
|
5
12521-MGC-003 New Genuine Part |
12521-MGC-003 |
from US $3.85 |
||
|
6
|
6
16210-MGC-000 New Genuine Part |
16210-MGC-000 |
from US $34.14 |
||
|
7
|
7
16217-MGC-000 New Genuine Part |
16217-MGC-000 |
from US $6.07 |
||
|
8
|
8
16218-MGC-J80 Band, insulator |
16218-MGC-J80 |
from US $4.88 |
||
|
9
|
9
16219-MGC-J80 Band, insulator |
16219-MGC-J80 |
from US $4.88 |
||
|
10
|
10
16222-MV4-300 Nut, square (5mm) |
16222-MV4-300 |
from US $1.48 |
||
|
11
|
11
31908-MGC-003 PLUG SPARK LMAR8A |
31908-MGC-003 |
from US $19.57 |
||
|
12
|
12
90002-MGC-000 New Genuine Part |
90002-MGC-000 |
from US $2.29 |
||
|
13
|
13
90004-GHB-710 Bolt, flange (6x40) |
90004-GHB-710 |
from US $2.44 |
||
|
14
|
14
90016-KT7-000 Bolt, flange (6x37) |
90016-KT7-000 |
from US $1.92 |
||
|
15
|
15
90018-425-000 Bolt, flange (6x48) |
90018-425-000 |
from US $3.03 |
||
|
16
|
16
90023-MM5-000 Bolt (5x28) |
90023-MM5-000 |
from US $2.15 |
||
|
17
|
17
90231-MGC-000 New Genuine Part |
90231-MGC-000 |
from US $2.15 |
||
|
18
|
18
90232-MGC-000 New Genuine Part |
90232-MGC-000 |
from US $2.29 |
||
|
19
|
19
90411-MGC-000 New Genuine Part |
90411-MGC-000 |
from US $3.63 |
||
|
20
|
20
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
21
|
21
92900-08028-0E BoltSTUD, 8X28 |
92900-08028-0E |
from US $1.10 |
||
|
22
|
22
9430108200 Dowel pin, 8x20 |
9430108200 |
from US $0.89 |
||
|
23
|
23
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
