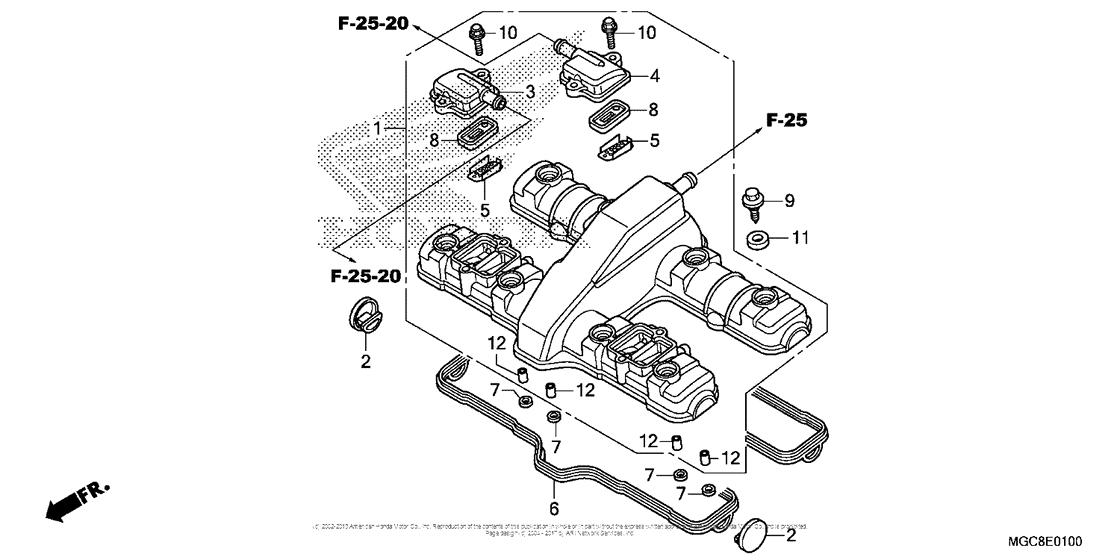

Cylinder Head Cover Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12300-MGC-J80 Cover assy., cylinder head |
12300-MGC-J80 |
from US $569.84 |
||
|
2
|
2
12331-MEJ-000 CapCYLINDER HEAD SIDE |
12331-MEJ-000 |
from US $8.28 |
||
|
3
|
3
12332-MGC-J80 Cover, r. reed valve |
12332-MGC-J80 |
from US $29 |
||
|
4
|
4
12333-MGC-J80 Cover, l. reed valve |
12333-MGC-J80 |
from US $29 |
||
|
5
|
5
12341-MAT-750 Plate, port |
12341-MAT-750 |
from US $11.25 |
||
|
6
|
6
12391-MGC-010 Gasket, head cover |
12391-MGC-010 |
from US $44.47 |
||
|
7
|
7
12396-KCR-940 Gasket b, head cover |
12396-KCR-940 |
from US $4.44 |
||
|
8
|
8
18601-KEA-741 Valve, reed |
18601-KEA-741 |
from US $15.78 |
||
|
9
|
9
90017-MGC-010 BOLT, HEAD COVER |
90017-MGC-010 |
from US $2.59 |
||
|
10
|
10
90020-ZC3-000 Bolt, flange, 6x20 |
90020-ZC3-000 |
from US $1.04 |
||
|
11
|
11
90543-MV9-670 Rubber, setting |
90543-MV9-670 |
from US $1.15 |
||
|
12
|
12
9430108200 Dowel pin, 8x20 |
9430108200 |
from US $0.89 |
