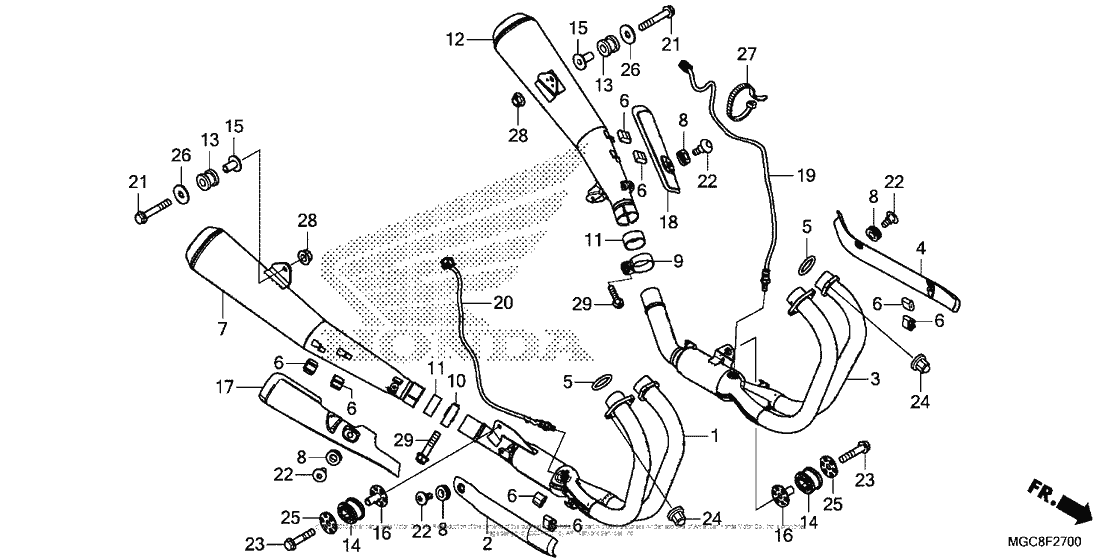

Exhaust Muffler Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18150-MGC-JB1 PIPE, R. EX. |
18150-MGC-JB1 |
from US $979.20 |
||
|
2
|
2
18151-MGC-N20 Protector, r. ex |
18151-MGC-N20 |
from US $108.53 |
||
|
3
|
3
18250-MGC-JB1 PIPE, L. EX. |
18250-MGC-JB1 |
from US $979.20 |
||
|
4
|
4
18251-MGC-N20 Protector, l. ex |
18251-MGC-N20 |
from US $119.24 |
||
|
5
|
5
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
6
|
6
18293-MCA-A20 Rubber |
18293-MCA-A20 |
from US $1.12 |
||
|
7
|
7
18310-MGC-JB1 MUFFLER, R. |
18310-MGC-JB1 |
from US $674.56 |
||
|
8
|
8
18357-MCG-000 Rubber |
18357-MCG-000 |
from US $3.18 |
||
|
9
|
9
18375-413-000 Band, r. rr. muffler |
18375-413-000 |
from US $18.22 |
||
|
10
|
10
18376-413-000 Band, l. rr. muffler |
18376-413-000 |
from US $18.09 |
||
|
11
|
11
18392-MG7-750 Gasket, rr. muffler |
18392-MG7-750 |
from US $13.32 |
||
|
12
|
12
18410-MGC-JB1 MUFFLER, L. |
18410-MGC-JB1 |
from US $674.56 |
||
|
13
|
13
18421-MGC-JB0 MOUNT RUBBER, MUFF |
18421-MGC-JB0 |
from US $3.85 |
||
|
14
|
14
18422-MFJ-D10 Rubber |
18422-MFJ-D10 |
from US $18.22 |
||
|
15
|
15
18422-MGC-JB0 COLLAR, MUFF MOUNT |
18422-MGC-JB0 |
from US $3.85 |
||
|
16
|
16
18423-MGC-N20 Collar, ex. pipe mounting |
18423-MGC-N20 |
from US $5.18 |
||
|
17
|
17
18425-MGC-JB1 COVER, R. MUFFLER |
18425-MGC-JB1 |
from US $112.20 |
||
|
18
|
18
18525-MGC-JB1 COVER, L. MUFFLER |
18525-MGC-JB1 |
from US $71.40 |
||
|
19
|
19
36531-MGC-JB1 SENSOR, OXYGEN |
36531-MGC-JB1 |
from US $204 |
||
|
20
|
20
36531-MGC-N21 Sensor, oxygen |
36531-MGC-N21 |
from US $204 |
||
|
21
|
21
90107-MCT-000 Bolt (8x35) |
90107-MCT-000 |
from US $2.59 |
||
|
22
|
22
90114-MCJ-000 Screw (6x14) |
90114-MCJ-000 |
from US $1.67 |
||
|
23
|
23
90122-MM2-000 Bolt (8x40) |
90122-MM2-000 |
from US $2.56 |
||
|
24
|
24
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $4.59 |
||
|
25
|
25
90501-MGC-N20 Washer (8.5x38) |
90501-MGC-N20 |
from US $2.66 |
||
|
26
|
26
90504-ME4-000 Washer (8.5x26) |
90504-ME4-000 |
from US $2.66 |
||
|
27
|
27
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
28
|
28
94050-08040 NutFLANGE, 8MM |
94050-08040 |
from US $0.52 |
||
|
29
|
29
95701-0803800 Bolt, flange, 8x38 |
95701-0803800 |
from US $0.41 |
