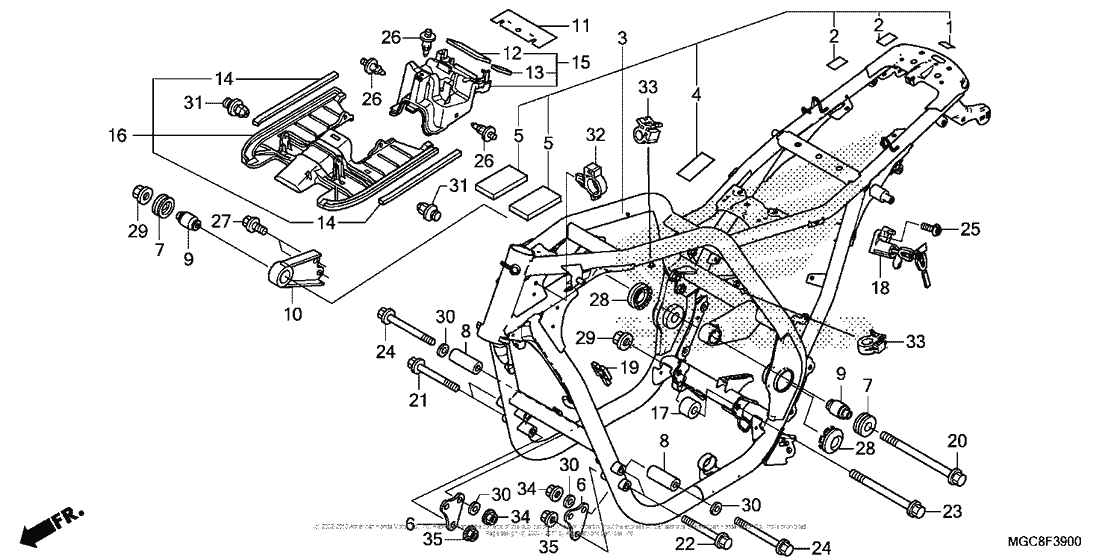

Frame Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17503-KCM-620 Film, protector |
17503-KCM-620 |
from US $2.59 |
||
|
2
|
2
17528-MR4-900 Tape, tank guard |
17528-MR4-900 |
from US $2.52 |
||
|
3
|
3
50010-MGC-JB0ZA SET *NH1* |
50010-MGC-JB0ZA |
from US $2,349.60 |
||
|
4
|
4
50159-KR3-300 Film, frame pipe |
50159-KR3-300 |
from US $2.72 |
||
|
5
|
5
50177-MGC-300 New Genuine Part |
50177-MGC-300 |
from US $2.96 |
||
|
6
|
6
50201-MGC-N20 Plate a, engine hanger |
50201-MGC-N20 |
from US $7.10 |
||
|
7
|
7
50203-MEJ-000 Mount rubber,c |
50203-MEJ-000 |
from US $11.81 |
||
|
8
|
8
50203-MGC-N20 Collar a, engine mounting |
50203-MGC-N20 |
from US $13.17 |
||
|
9
|
9
50205-MEJ-000 Mount rubber e |
50205-MEJ-000 |
from US $8.88 |
||
|
10
|
10
50216-MGC-A20 Brkt b, r. eng hgr |
50216-MGC-A20 |
from US $20.43 |
||
|
11
|
11
50334-MGC-000 New Genuine Part |
50334-MGC-000 |
from US $7.70 |
||
|
12
|
12
50335-MGC-300 New Genuine Part |
50335-MGC-300 |
from US $4 |
||
|
13
|
13
50336-MGC-300 New Genuine Part |
50336-MGC-300 |
from US $1.40 |
||
|
14
|
14
50337-MGC-JB0 MAT, HEAT GUARD |
50337-MGC-JB0 |
from US $2.44 |
||
|
15
|
15
50340-MGC-010 SET, ECU BOX |
50340-MGC-010 |
from US $17.95 |
||
|
16
|
16
50341-MGC-JB0 SET, HEAT GUARD |
50341-MGC-JB0 |
US $32.88 |
||
|
17
|
17
50357-MEJ-000 Collar,rr eng han |
50357-MEJ-000 |
from US $6.22 |
||
|
18
|
18
50710-MGC-JB1 HOLDER ASSY., HELMET |
50710-MGC-JB1 |
from US $49.15 |
||
|
19
|
19
80111-KE5-000 Clip e, wire harness |
80111-KE5-000 |
from US $2.25 |
||
|
20
|
20
90102-MGC-JB0 BOLT, FLG (12X250) |
90102-MGC-JB0 |
from US $14.50 |
||
|
21
|
21
90103-MGC-JB0 BOLT, FLG (10X100) |
90103-MGC-JB0 |
from US $5.77 |
||
|
22
|
22
90104-MGC-JB0 BOLT, FLANGE (10X85) |
90104-MGC-JB0 |
from US $5.77 |
||
|
23
|
23
90106-MGC-JB0 BOLT, FLG (12X193) |
90106-MGC-JB0 |
from US $15.07 |
||
|
24
|
24
90107-MGC-N20 Bolt, flange (10x115) |
90107-MGC-N20 |
from US $6.66 |
||
|
25
|
25
90108-MGC-JB1 BOLT ONE-WAY (6X14) |
90108-MGC-JB1 |
from US $2.59 |
||
|
26
|
26
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.02 |
||
|
27
|
27
90165-GHB-650 BOLT (10X20) |
90165-GHB-650 |
from US $2.70 |
||
|
28
|
28
90306-MBR-000 Cap,pivot b |
90306-MBR-000 |
from US $15.64 |
||
|
29
|
29
90364-MEJ-000 Nut flange 12mm |
90364-MEJ-000 |
from US $1.48 |
||
|
30
|
30
90451-PE2-000 WasherSPECIAL, 11X28 |
90451-PE2-000 |
US $12.39 |
||
|
31
|
31
90657-SB0-003 ClipSPLASH SHIELD |
90657-SB0-003 |
from US $2.45 |
||
|
32
|
32
90681-MGC-JB1 CLIP, HOSE CLUTCH |
90681-MGC-JB1 |
from US $2.29 |
||
|
33
|
33
90690-GHB-641 Clip, cable, 10mm |
90690-GHB-641 |
from US $1.95 |
||
|
34
|
34
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
35
|
35
90303-428-900 Nut, flange (10mm) |
90303-428-900 |
from US $1.89 |
