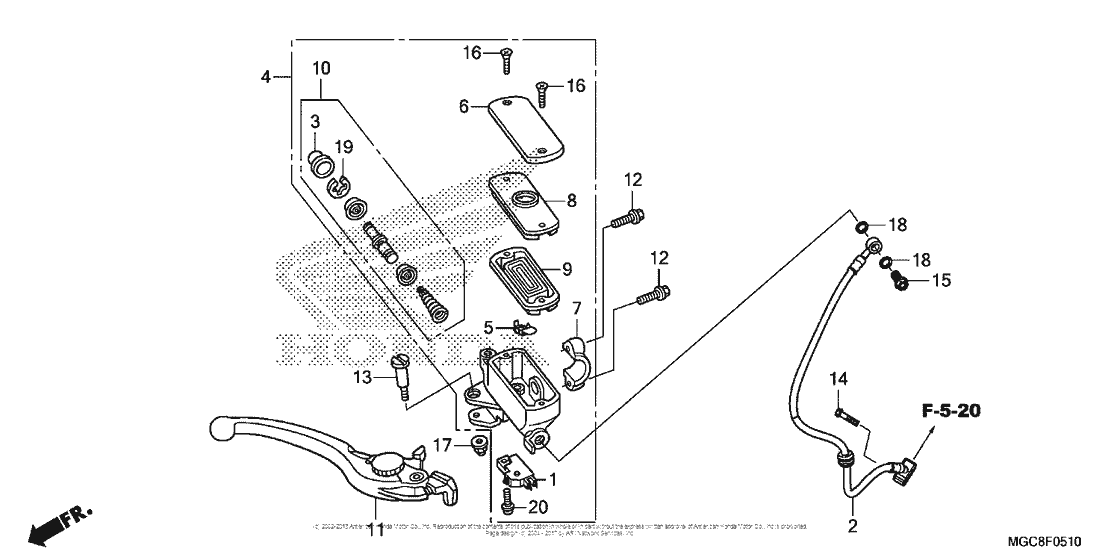

Front Brake Master Cylinder Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MGS-D31 Switch, fr. stop |
35340-MGS-D31 |
from US $14.01 |
||
|
2
|
2
45125-MGC-JB1 HOSE COMP A, FR. |
45125-MGC-JB1 |
from US $56.58 |
||
|
3
|
3
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
4
|
4
45510-MGC-JB1 SUB-ASSY., FR. M/C |
45510-MGC-JB1 |
US $312.97 |
||
|
5
|
5
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
6
|
6
45513-MZ8-R41 CapMASTER CYLINDER (NISSIN) |
45513-MZ8-R41 |
from US $18.50 |
||
|
7
|
7
45517-KR3-901 Holder |
45517-KR3-901 |
from US $10.95 |
||
|
8
|
8
45518-MM5-006 Plate, diaphragm |
45518-MM5-006 |
from US $8.79 |
||
|
9
|
9
45520-MM5-006 Diaphragm |
45520-MM5-006 |
from US $11.25 |
||
|
10
|
10
45530-MA4-671 Master cylinder set |
45530-MA4-671 |
from US $36.58 |
||
|
11
|
11
53170-MEJ-305 Lever assy., r. handle (coo) |
53170-MEJ-305 |
US $41.57 |
||
| replacement | |||||
|
11
|
11
53170-MEJ-016 Lever, r. handle |
53170-MEJ-016 |
from US $36.59 |
||
|
12
|
12
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
13
|
13
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
14
|
14
90124-MCH-A00 Bolt (6x25) |
90124-MCH-A00 |
from US $1.55 |
||
|
15
|
15
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
16
|
16
90158-MT7-000 Screw, flat (4x12) |
90158-MT7-000 |
from US $2.29 |
||
|
17
|
17
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
18
|
18
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
19
|
19
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
20
|
20
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
