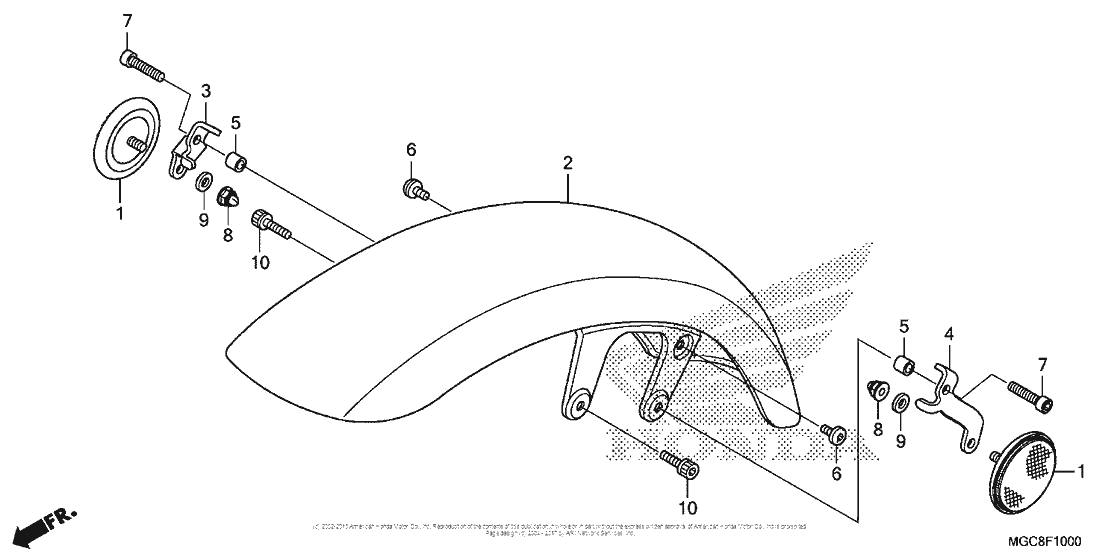

Front Fender (1) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-KTG-U01 Reflex refl fr |
33741-KTG-U01 |
from US $7.55 |
||
|
2
|
2
61100-MGC-000 FENDER COMP, FR (CHROME) |
61100-MGC-000 |
from US $242.08 |
||
|
3
|
3
61113-MGC-DA0 STAY, FR. |
61113-MGC-DA0 |
from US $10.21 |
||
|
4
|
4
61114-MGC-DA0 STAY, FR. |
61114-MGC-DA0 |
from US $10.21 |
||
|
5
|
5
61116-MGC-DA0 COLR, FR. REFLECTOR |
61116-MGC-DA0 |
from US $2.29 |
||
|
6
|
6
90106-MGC-000 Bolt |
90106-MGC-000 |
from US $2.15 |
||
|
7
|
7
90111-GHB-680 SOCKET BOLT (6X28) |
90111-GHB-680 |
from US $2.22 |
||
|
8
|
8
90301-MA6-003 Nut (6mm) |
90301-MA6-003 |
from US $3.18 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
10
|
10
96600-060-160-0 BoltSOCKET, 6X16 |
96600-060-160-0 |
from US $0.65 |
