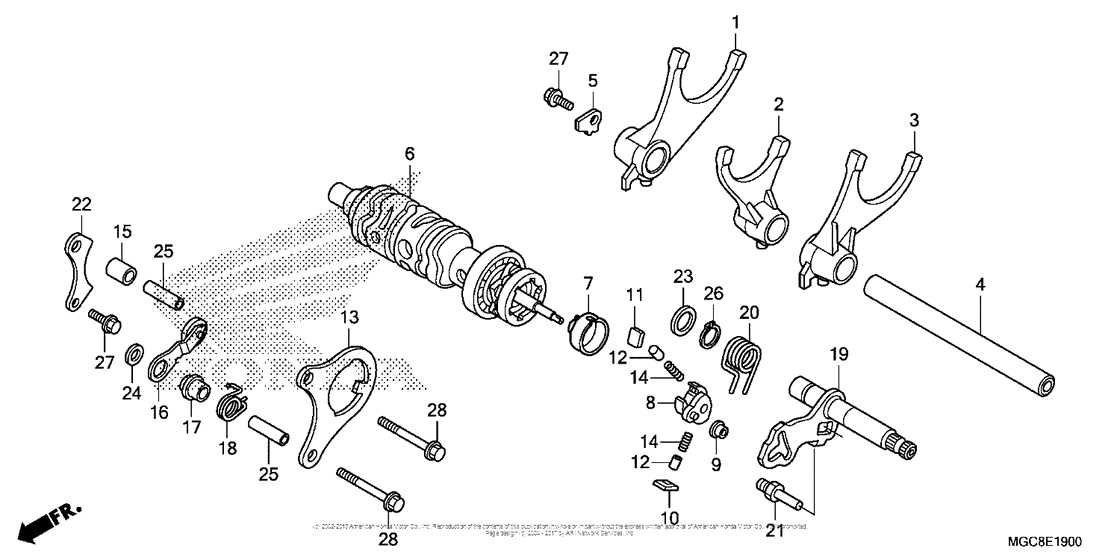

Gearshift Drum + Gearshift Fork Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-MGC-N20 Fork, r. gearshift |
24211-MGC-N20 |
from US $53.18 |
||
|
2
|
2
24212-MGC-N20 Fork, gearshift center |
24212-MGC-N20 |
from US $51.27 |
||
|
3
|
3
24213-MGC-N20 Fork, l. gearshift |
24213-MGC-N20 |
from US $51.68 |
||
|
4
|
4
24231-MGC-N20 Shaft, gearshift fork |
24231-MGC-N20 |
from US $16.46 |
||
|
5
|
5
24235-MAZ-000 Plate,gearshift f |
24235-MAZ-000 |
from US $5.03 |
||
|
6
|
6
24310-MGC-N20 Drum, gearshift |
24310-MGC-N20 |
from US $146.88 |
||
|
7
|
7
24314-MJ0-000 Piece |
24314-MJ0-000 |
from US $3.70 |
||
|
8
|
8
24321-KT8-030 Shifter, drum |
24321-KT8-030 |
from US $37.67 |
||
|
9
|
9
24322-MM4-000 Collar, shifter |
24322-MM4-000 |
from US $2.07 |
||
|
10
|
10
24324-KA3-711 Pawl a, ratchet |
24324-KA3-711 |
from US $4.95 |
||
|
11
|
11
24325-KA3-711 Pawl b, ratchet |
24325-KA3-711 |
from US $6.96 |
||
|
12
|
12
24326-KBH-901 Plunger, pawl |
24326-KBH-901 |
from US $3.74 |
||
|
13
|
13
24328-MFP-N90 New Genuine Part |
24328-MFP-N90 |
from US $10.06 |
||
|
14
|
14
24329-KA3-740 Spring, pawl plunger |
24329-KA3-740 |
from US $1.92 |
||
|
15
|
15
24329-KT8-000 Collar |
24329-KT8-000 |
from US $3.70 |
||
|
16
|
16
24430-MBR-000 Stpr comp,drum |
24430-MBR-000 |
from US $11.99 |
||
|
17
|
17
24434-KT7-000 Collar, drum stopper |
24434-KT7-000 |
from US $4.74 |
||
|
18
|
18
24435-MFP-N91 New Genuine Part |
24435-MFP-N91 |
from US $3.18 |
||
|
19
|
19
24610-MGC-N20 Spindle, gearshift |
24610-MGC-N20 |
from US $36.72 |
||
|
20
|
20
24651-MAE-000 Spring, shift return |
24651-MAE-000 |
US $10.47 |
||
|
21
|
21
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
22
|
22
24655-MM5-000 Plate |
24655-MM5-000 |
from US $7.25 |
||
|
23
|
23
90451-155-000 Washer, 14mm |
90451-155-000 |
from US $3.03 |
||
|
24
|
24
90485-040-000 Washer (8mm) |
90485-040-000 |
from US $1.92 |
||
|
25
|
25
91103-KT7-000 Pin, dowel (8x26.4) |
91103-KT7-000 |
from US $2.89 |
||
|
26
|
26
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
27
|
27
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
28
|
28
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
