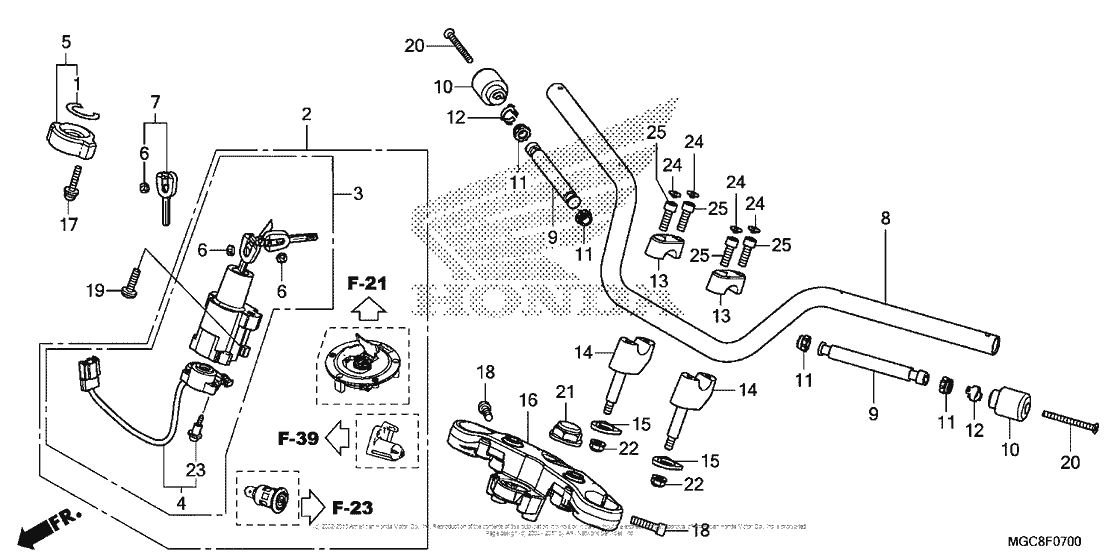

Handlebar + Top Bridge Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30433-MBW-602 Seal |
30433-MBW-602 |
from US $3.18 |
||
|
2
|
2
35010-MGC-AA0 LOCK SET |
35010-MGC-AA0 |
from US $461.33 |
||
| replacement | |||||
|
2
|
2
35010-MGC-AA1 Lock Set |
35010-MGC-AA1 |
from US $444.93 |
||
|
3
|
3
35100-MGC-AA2 Switch Assy., Combination & Lock (Hondalock) |
35100-MGC-AA2 |
US $196.96 |
||
|
4
|
4
35101-MGC-JB1 BASE COMP, CONTACT |
35101-MGC-JB1 |
from US $56.88 |
||
|
5
|
5
35106-MAT-A00 Cover |
35106-MAT-A00 |
from US $6.70 |
||
|
6
|
6
35113-MJK-N20 EMBLEM, KEY |
35113-MJK-N20 |
from US $2.56 |
||
|
7
|
7
35121-MGP-A93 Key, blank |
35121-MGP-A93 |
US $28.56 |
||
|
8
|
8
53100-MGC-JB0 PIPE, STRG HANDLE |
53100-MGC-JB0 |
from US $157.76 |
||
|
9
|
9
53105-KV3-000 Weight, handlebar |
53105-KV3-000 |
from US $16.73 |
||
|
10
|
10
53105-MEJ-720 WeightSTEERING HANDLE |
53105-MEJ-720 |
from US $16.51 |
||
|
11
|
11
53106-KR3-770 Rubber a |
53106-KR3-770 |
from US $3.18 |
||
|
12
|
12
53108-KR3-940 Ring |
53108-KR3-940 |
from US $2.68 |
||
|
13
|
13
53131-KR8-000 Holder, handlebar |
53131-KR8-000 |
from US $17.42 |
||
|
14
|
14
53132-MEJ-000 Holder comp,hndl |
53132-MEJ-000 |
from US $29.51 |
||
|
15
|
15
53134-MGC-000 New Genuine Part |
53134-MGC-000 |
from US $4 |
||
|
16
|
16
53300-MGC-JB0 BRIDGE COMP |
53300-MGC-JB0 |
from US $183.60 |
||
|
17
|
17
90020-MCS-G00 Screw-washer (5x28) |
90020-MCS-G00 |
from US $1.47 |
||
|
18
|
18
90101-MGC-JB0 BOLT, SOCKET (8X28) |
90101-MGC-JB0 |
from US $3.48 |
||
|
19
|
19
90107-MBG-000 Bolt, one-way (8mm) |
90107-MBG-000 |
from US $2.37 |
||
|
20
|
20
90191-MK6-670 Screw,oval,6x60 |
90191-MK6-670 |
from US $2.63 |
||
|
21
|
21
90304-MK4-000 Nut, steering stem |
90304-MK4-000 |
from US $8.55 |
||
|
22
|
22
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
23
|
23
91059-KY2-711 Screw, tap (3x16) |
91059-KY2-711 |
from US $2.15 |
||
|
24
|
24
91455-KEA-000 Cap (8mm) |
91455-KEA-000 |
from US $2.07 |
||
|
25
|
25
96600-0802500 Bolt, socket (8x25) |
96600-0802500 |
from US $0.81 |
||
