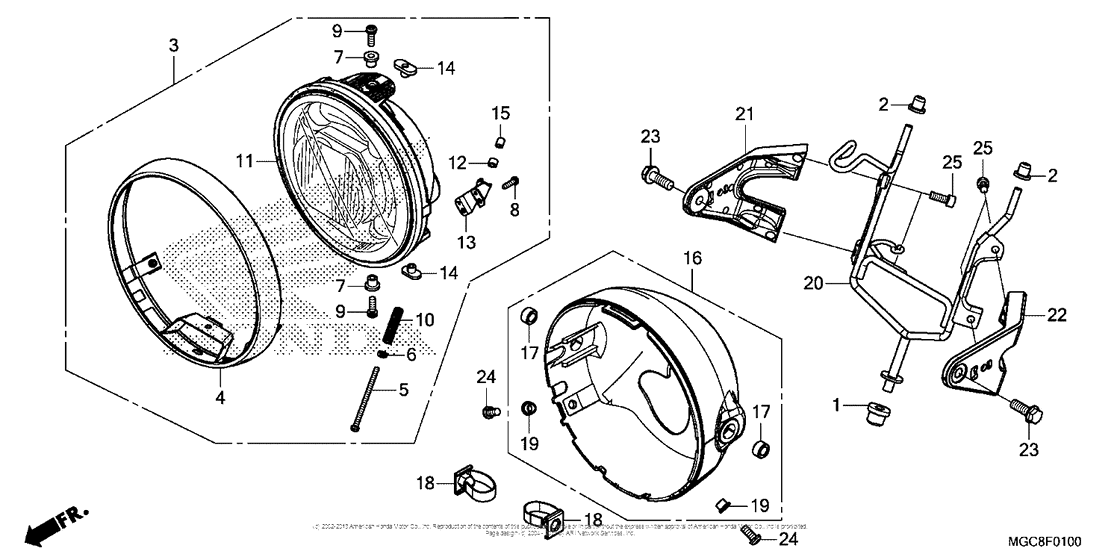

Headlight Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19051-MB2-000 Rubber |
19051-MB2-000 |
from US $3.40 |
||
|
2
|
2
19113-MB1-870 Rubber |
19113-MB1-870 |
from US $1.80 |
||
|
3
|
3
33100-MGC-JB1 HEADLIGHT ASSY. |
33100-MGC-JB1 |
US $1,500.68 |
||
| replacement | |||||
|
3
|
3
33100-MGC-JB2 HEADLIGHT ASSY STA |
33100-MGC-JB2 |
from US $1,153.82 |
||
|
4
|
4
33101-MAZ-003 Rim, headlight |
33101-MAZ-003 |
from US $64.76 |
||
|
5
|
5
33103-MAH-671 Screw |
33103-MAH-671 |
from US $1.46 |
||
|
6
|
6
33105-MAH-671 Washer |
33105-MAH-671 |
from US $1.26 |
||
|
7
|
7
33105-MAZ-003 Collar |
33105-MAZ-003 |
from US $1.33 |
||
|
8
|
8
33106-MGC-JB0 SCREW (M4X14) |
33106-MGC-JB0 |
from US $1.23 |
||
|
9
|
9
33106-MZ0-671 Screw-washer |
33106-MZ0-671 |
from US $1.63 |
||
|
10
|
10
33107-MK7-671 Spring |
33107-MK7-671 |
US $6.02 |
||
|
11
|
11
33110-MGC-JB1 HEADLIGHT UNIT |
33110-MGC-JB1 |
from US $1,014.56 |
||
|
12
|
12
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
13
|
13
33121-MAZ-003 Stay, adjust screw |
33121-MAZ-003 |
from US $2.59 |
||
|
14
|
14
33128-MAH-671 Nut, special |
33128-MAH-671 |
from US $1.63 |
||
|
15
|
15
33136-426-830 Cover, screw |
33136-426-830 |
from US $1.92 |
||
|
16
|
16
61301-MGC-JB0 CASE, HEADLIGHT |
61301-MGC-JB0 |
from US $131.92 |
||
|
17
|
17
61302-MBV-710 COLLAR, HDLT CASE |
61302-MBV-710 |
from US $2.52 |
||
|
18
|
18
61303-MCE-H50 Nut, headlight case |
61303-MCE-H50 |
from US $4.11 |
||
|
19
|
19
61304-379-690 Collar |
61304-379-690 |
from US $3.55 |
||
|
20
|
20
61311-MGC-JB0 STAY COMP, HD/LT |
61311-MGC-JB0 |
from US $63.38 |
||
|
21
|
21
61317-MGC-JB0 PLATE R, HD/LT |
61317-MGC-JB0 |
from US $28.56 |
||
|
22
|
22
61318-MGC-JB0 PLATE L, HD/LT |
61318-MGC-JB0 |
from US $28.56 |
||
|
23
|
23
90123-KR3-000 Bolt (8x23) |
90123-KR3-000 |
from US $2.72 |
||
|
24
|
24
93500-050-120-G ScrewPAN, 5X12 |
93500-050-120-G |
from US $0.37 |
||
|
25
|
25
96600-060-160-7 BoltSOCKET, 6X16 |
96600-060-160-7 |
from US $0.59 |
||
