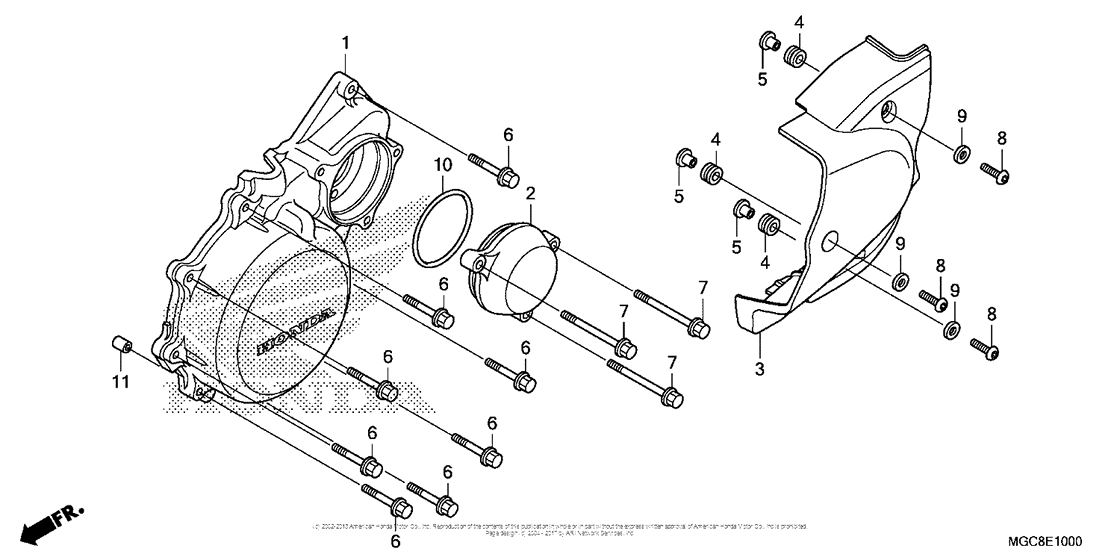

Left Crankcase Cover Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11321-MGC-J80 Cover, l. crankcase |
11321-MGC-J80 |
from US $150.96 |
||
|
2
|
2
11340-MAZ-000 CoverL. CAP |
11340-MAZ-000 |
from US $50.59 |
||
|
3
|
3
11661-MGC-N20 Cover, l. side |
11661-MGC-N20 |
from US $269.28 |
||
|
4
|
4
64386-MS2-000 Rubber, pivot cover |
64386-MS2-000 |
from US $1.87 |
||
|
5
|
5
83119-MG9-000 Collar, lock setting |
83119-MG9-000 |
from US $3.04 |
||
|
6
|
6
90006-GHB-680 Bolt, flange (6x28) |
90006-GHB-680 |
from US $2.22 |
||
|
7
|
7
90006-GHB-750 Bolt, flange (6x60) |
90006-GHB-750 |
from US $2.44 |
||
|
8
|
8
90085-MCZ-000 Bolt, special (6x17) |
90085-MCZ-000 |
from US $2.22 |
||
|
9
|
9
90525-428-900 Washer, plain, 6mm |
90525-428-900 |
from US $2.52 |
||
|
10
|
10
91303-MEJ-003 O-ring,58x2.5 |
91303-MEJ-003 |
from US $5.18 |
||
|
11
|
11
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
