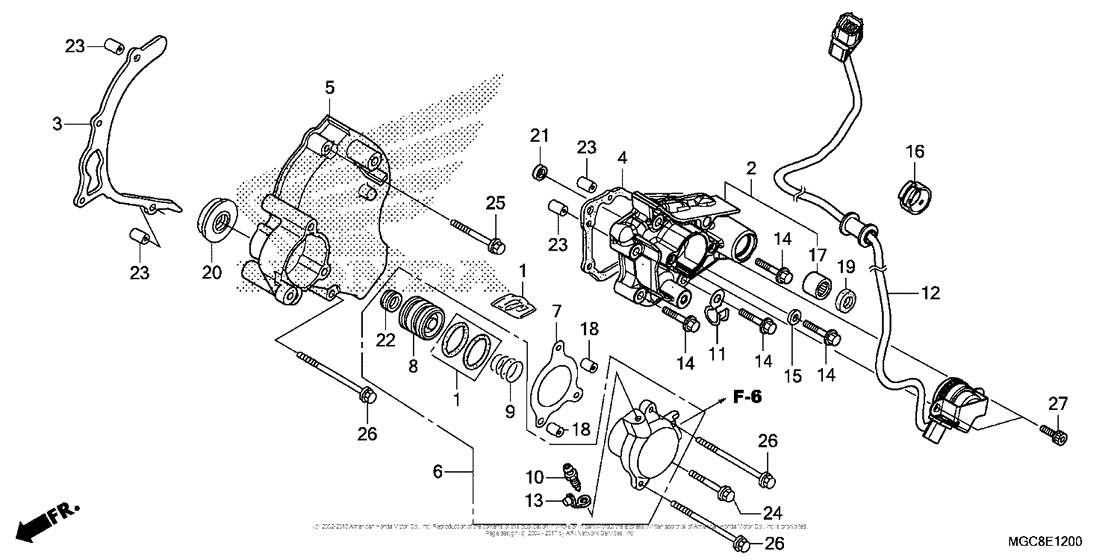

Left Rear Cover Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04121-MEJ-305
O-ring set
|
04121-MEJ-305 |
— | ||
| replacement | |||||
|
1
|
1
04121-MEJ-315 O-Ring Set |
04121-MEJ-315 |
from US $6.22 |
||
|
2
|
2
11360-MGC-N20 Holder, l. side |
11360-MGC-N20 |
from US $92.48 |
||
|
3
|
3
11365-MGC-N20 Plate, drive chain guide |
11365-MGC-N20 |
from US $10.95 |
||
|
4
|
4
11394-MGC-N20 Gasket, l. side holder |
11394-MGC-N20 |
from US $6.51 |
||
|
5
|
5
11652-MAZ-010 COVER, L. RR. |
11652-MAZ-010 |
from US $108.12 |
||
|
6
|
6
22860-MEJ-003 Cylinder assy. |
22860-MEJ-003 |
from US $68.68 |
||
|
7
|
7
22862-MGJ-D00 Gasket, slave cylinder |
22862-MGJ-D00 |
from US $3.62 |
||
|
8
|
8
22863-MEJ-003 Piston |
22863-MEJ-003 |
from US $21.08 |
||
|
9
|
9
22864-MEJ-003 Spring |
22864-MEJ-003 |
from US $6.81 |
||
|
10
|
10
22866-MF2-711 Screw, bleeder |
22866-MF2-711 |
from US $4.07 |
||
|
11
|
11
32921-039-000 Clip,dynamo cord |
32921-039-000 |
from US $5.33 |
||
|
12
|
12
35759-MGC-N21 Switch assy., change |
35759-MGC-N21 |
from US $69.36 |
||
|
13
|
13
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
14
|
14
90004-GHB-700 Bolt, flange (6x35) |
90004-GHB-700 |
from US $1.42 |
||
|
15
|
15
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $1.35 |
||
|
16
|
16
90683-KJ2-003 Clip, wire harness |
90683-KJ2-003 |
from US $3.42 |
||
|
17
|
17
91002-459-773 Needle,brg |
91002-459-773 |
US $7.25 |
||
|
18
|
18
91103-429-000 Dowel pin8X10 |
91103-429-000 |
from US $2.74 |
||
|
19
|
19
91204-KE8-003 Oil seal, 13x22x5 (arai) |
91204-KE8-003 |
from US $2.68 |
||
|
20
|
20
91204-MG8-003 Oil seal (8x25x7) |
91204-MG8-003 |
from US $2.63 |
||
|
21
|
21
91205-MJ0-005 Oil seal (6x16x5) |
91205-MJ0-005 |
from US $4.07 |
||
|
22
|
22
91209-MB0-003 Oil seal (8x18x5) |
91209-MB0-003 |
from US $2.23 |
||
|
23
|
23
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
24
|
24
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
25
|
25
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
26
|
26
96001-0607500 Bolt, flange (6x75) |
96001-0607500 |
from US $0.72 |
||
|
27
|
27
96600-0601400 Bolt, socket (6x14) |
96600-0601400 |
from US $0.59 |
||
