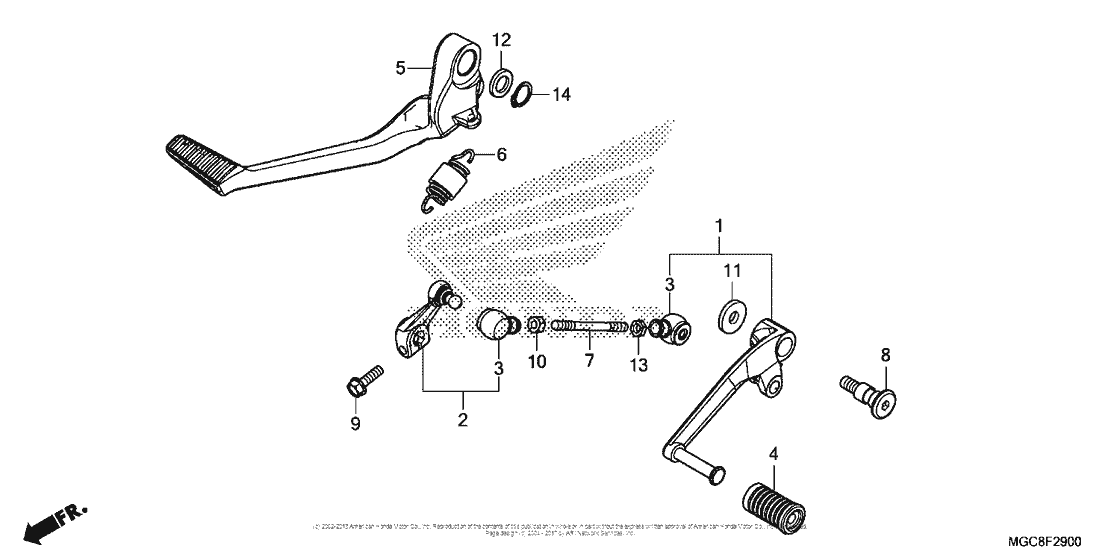

Pedal Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24705-MEJ-B00 Pedal compCHANGE |
24705-MEJ-B00 |
from US $67.73 |
||
|
2
|
2
24710-MGC-000 New Genuine Part |
24710-MGC-000 |
from US $47.46 |
||
|
3
|
3
24724-422-000 Cover, dust |
24724-422-000 |
from US $6.51 |
||
|
4
|
4
24781-KR3-770 Rubber, change pedal |
24781-KR3-770 |
from US $3.48 |
||
|
5
|
5
46500-MGC-JB0 PEDAL COMP, RR. |
46500-MGC-JB0 |
from US $105.40 |
||
|
6
|
6
46511-KZ4-J00 Spring assy., rr. |
46511-KZ4-J00 |
from US $3.47 |
||
|
7
|
7
90101-MGR-670 Bolt, tie rod |
90101-MGR-670 |
from US $4.07 |
||
|
8
|
8
90115-MBR-J10 BoltCHANGE PIVOT |
90115-MBR-J10 |
from US $5.03 |
||
|
9
|
9
90118-KY1-000 Bolt, flange (6x20) |
90118-KY1-000 |
from US $2.44 |
||
|
10
|
10
90201-KV3-700 Nut, tie rod |
90201-KV3-700 |
from US $1.85 |
||
|
11
|
11
90426-355-000 Washer, rotor setting |
90426-355-000 |
from US $4.74 |
||
|
12
|
12
90557-230-000 Washer (15.2x25) |
90557-230-000 |
from US $2.89 |
||
|
13
|
13
94002-060200S Nut, hex. (6mm) |
94002-060200S |
from US $0.52 |
||
|
14
|
14
9451115000 Circlip, external, 15mm |
9451115000 |
from US $0.44 |
