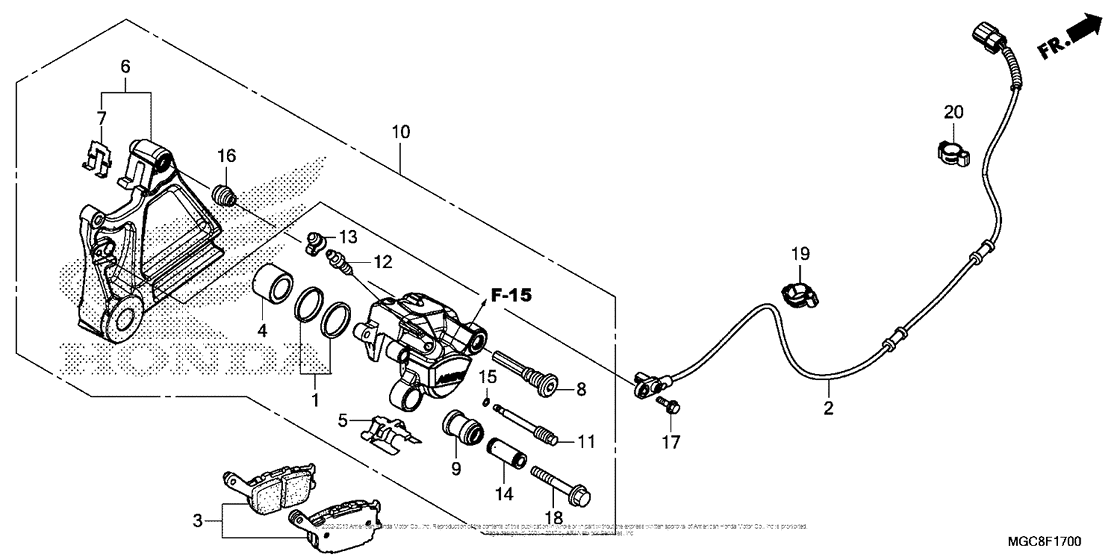

Rear Brake Caliper (1) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-443-405 Seal set, piston |
06451-443-405 |
from US $14.65 |
||
|
2
|
2
38510-MGC-JB1 SENSOR, RR. |
38510-MGC-JB1 |
from US $163.34 |
||
|
3
|
3
43105-MW0-425 Pad set, rr. |
43105-MW0-425 |
from US $66.13 |
||
|
4
|
4
43107-KT7-761 Piston |
43107-KT7-761 |
from US $19.04 |
||
|
5
|
5
43108-MBB-006 Spring, pad |
43108-MBB-006 |
from US $3.96 |
||
|
6
|
6
43110-MGC-JB1 BRACKET COMP, RR. |
43110-MGC-JB1 |
from US $104.20 |
||
|
7
|
7
43112-MV9-016 Retainer |
43112-MV9-016 |
from US $6.07 |
||
|
8
|
8
43131-KW3-006 Bolt, pin |
43131-KW3-006 |
from US $9.47 |
||
|
9
|
9
43132-KT7-761 Boot, sleeve |
43132-KT7-761 |
from US $3.13 |
||
|
10
|
10
43150-MGC-JB1 CALIPER SUB-ASSY. |
43150-MGC-JB1 |
from US $264.70 |
||
|
11
|
11
43215-KZ4-J41 Pin, hanger |
43215-KZ4-J41 |
from US $5.18 |
||
|
12
|
12
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
13
|
13
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
14
|
14
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
15
|
15
45111-MAJ-G41 O-ring (2.5x1.5) |
45111-MAJ-G41 |
from US $3.26 |
||
|
16
|
16
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
17
|
17
90117-MJP-G60 BOLT, FLANGE (6X14) |
90117-MJP-G60 |
from US $2 |
||
|
18
|
18
90180-MN8-006 Bolt, flange (8x49) |
90180-MN8-006 |
from US $2.41 |
||
|
19
|
19
90690-MGS-D81 Clip, cable (12mm) |
90690-MGS-D81 |
from US $1.85 |
||
|
20
|
20
90690-MJE-D11 New Genuine Part |
90690-MJE-D11 |
from US $1.70 |
