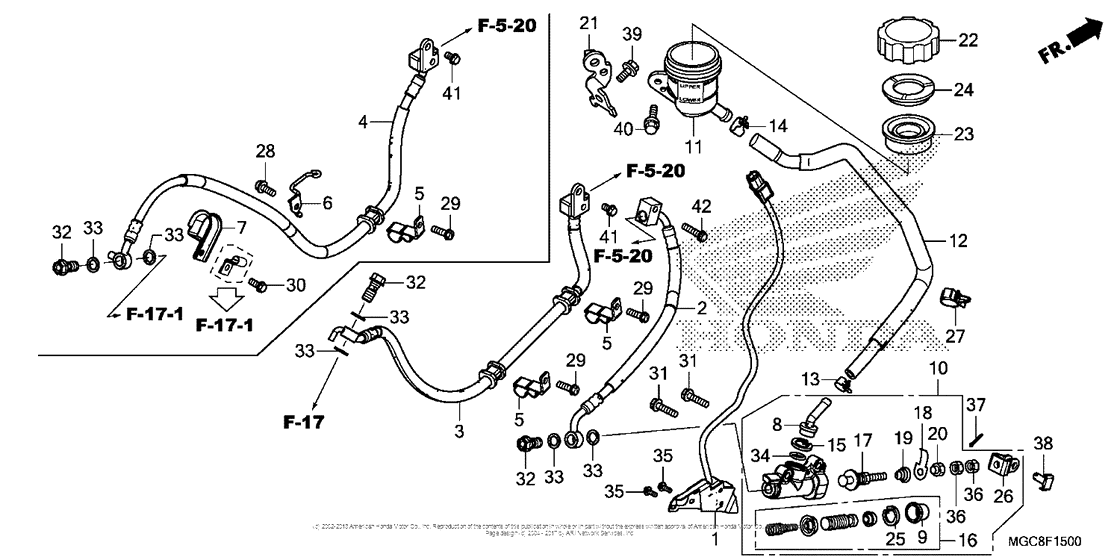

Rear Brake Master Cylinder Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35300-MGC-JB0 SW SET, RR. STOP |
35300-MGC-JB0 |
from US $37.81 |
||
|
2
|
2
43310-MGC-JB1 HOSE COMP A, RR. |
43310-MGC-JB1 |
from US $40.66 |
||
|
3
|
3
43313-MGC-JB1 HOSE COMP B, RR. |
43313-MGC-JB1 |
from US $58.34 |
||
|
5
|
5
43316-MGC-750 New Genuine Part |
43316-MGC-750 |
from US $7.24 |
||
|
8
|
8
43503-KCY-671 Connector |
43503-KCY-671 |
from US $9.32 |
||
|
9
|
9
43504-MB2-006 Boot |
43504-MB2-006 |
from US $3.55 |
||
|
10
|
10
43510-MGC-JB1 M/C SUB-ASSY., RR. |
43510-MGC-JB1 |
from US $123.08 |
||
|
11
|
11
43511-MGE-016 Cup |
43511-MGE-016 |
from US $19.45 |
||
|
12
|
12
43512-MGC-JB1 HOSE COMP, RR. M/C |
43512-MGC-JB1 |
from US $23.26 |
||
|
13
|
13
43514-KS6-701 Clamp |
43514-KS6-701 |
from US $10.95 |
||
|
14
|
14
43514-MN9-006 Clamp |
43514-MN9-006 |
from US $8.39 |
||
|
15
|
15
43517-KS6-701 Circlip, rr. |
43517-KS6-701 |
from US $3.03 |
||
|
16
|
16
43520-MB2-315 Piston set |
43520-MB2-315 |
from US $46.78 |
||
|
17
|
17
43530-MGC-JB1 PUSH ROD COMP |
43530-MGC-JB1 |
from US $17.88 |
||
|
18
|
18
43537-MN5-006 Plate, switch |
43537-MN5-006 |
from US $3.40 |
||
|
19
|
19
43538-MCA-006 Spring, switch |
43538-MCA-006 |
from US $1.51 |
||
|
20
|
20
43539-MN5-006 Nut, switch plate |
43539-MN5-006 |
from US $2.70 |
||
|
21
|
21
43555-MGC-000 New Genuine Part |
43555-MGC-000 |
from US $4.62 |
||
|
22
|
22
45513-MEL-D21 Cap, oil cup |
45513-MEL-D21 |
from US $13.91 |
||
|
23
|
23
45520-300-000 Diaphragm |
45520-300-000 |
from US $7.99 |
||
|
24
|
24
45521-MJ6-006 Plate, diaphragm |
45521-MJ6-006 |
from US $4.22 |
||
|
25
|
25
46182-MEL-D21 Circlip |
46182-MEL-D21 |
from US $1.42 |
||
|
26
|
26
46504-MAH-671 Joint, brake rod |
46504-MAH-671 |
from US $6.22 |
||
|
27
|
27
90681-MGC-JB1 CLIP, HOSE CLUTCH |
90681-MGC-JB1 |
from US $2.29 |
||
|
29
|
29
90105-MY9-000 Bolt, flange (6x18) |
90105-MY9-000 |
from US $2 |
||
|
31
|
31
90131-124-000 Bolt, flange (6x25) |
90131-124-000 |
from US $1.04 |
||
|
32
|
32
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
33
|
33
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
34
|
34
91212-422-006 O-ring (14.8x2.4) |
91212-422-006 |
from US $3.11 |
||
|
35
|
35
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
36
|
36
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
37
|
37
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
38
|
38
9501554000 Pin d, joint |
9501554000 |
from US $1.48 |
||
|
39
|
39
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
40
|
40
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
41
|
41
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
||
|
42
|
42
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
