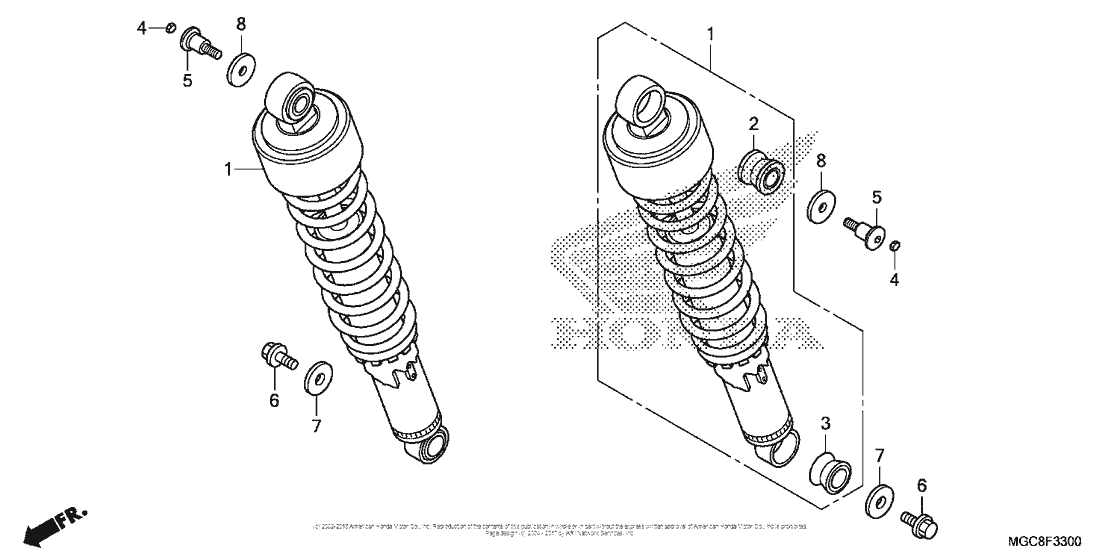

Rear Shock Absorber (1) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-MGC-JB1 CUSHION ASSY., RR. |
52400-MGC-JB1 |
from US $530.40 |
||
|
2
|
2
52487-MZ1-003 Bush a,damper |
52487-MZ1-003 |
from US $6.07 |
||
|
3
|
3
52489-HN0-671 Bush, rubber (upper) |
52489-HN0-671 |
from US $3.85 |
||
|
4
|
4
90005-MAH-000 Plug, hex. (5mm) |
90005-MAH-000 |
from US $1.41 |
||
|
5
|
5
90116-MGC-JB0 BOLT, SPECIAL (6MM) |
90116-MGC-JB0 |
from US $5.18 |
||
|
6
|
6
90125-KR3-000 Bolt (8x12) |
90125-KR3-000 |
from US $1.87 |
||
|
7
|
7
90504-ME4-000 Washer (8.5x26) |
90504-ME4-000 |
from US $2.66 |
||
|
8
|
8
90563-ZV4-000 Washer, plain, 6mm |
90563-ZV4-000 |
from US $2.89 |
