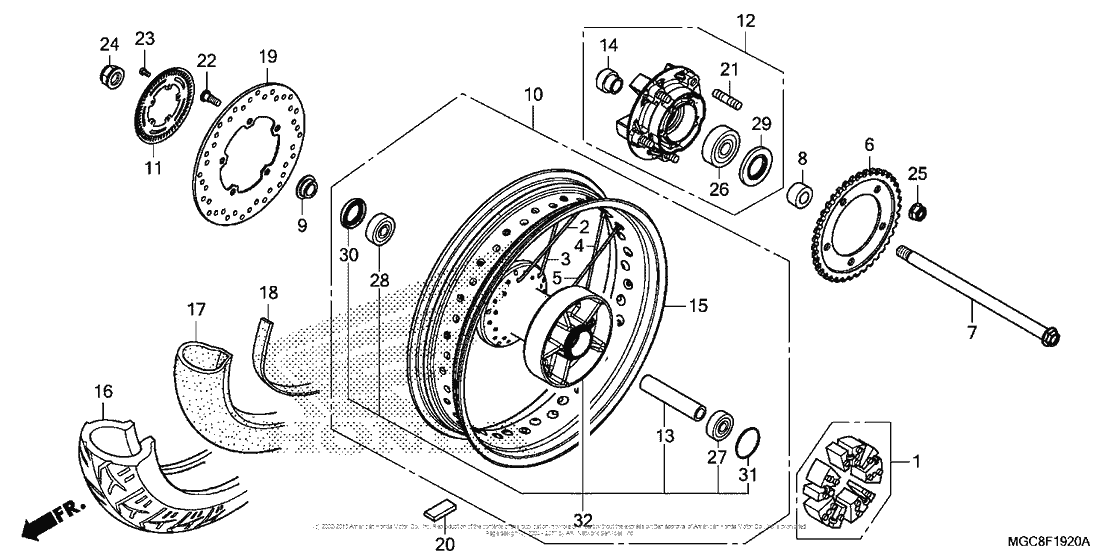

Rear Wheel (1) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06410-MY5-730 Damper setWHEEL |
06410-MY5-730 |
from US $35.90 |
||
|
2
|
2
06420-MGC-JB0 SPOKE SET, RR. R |
06420-MGC-JB0 |
from US $5.03 |
||
|
3
|
3
06421-MGC-JB0 SPOKE SET, RR. R |
06421-MGC-JB0 |
from US $5.03 |
||
|
4
|
4
06422-MGC-JB0 SPOKE SET, RR. L |
06422-MGC-JB0 |
from US $5.03 |
||
|
5
|
5
06423-MGC-JB0 SPOKE SET, RR. L |
06423-MGC-JB0 |
from US $5.03 |
||
|
6
|
6
41201-MGC-JB0 SPROCKET (40T) |
41201-MGC-JB0 |
from US $88.40 |
||
|
7
|
7
42301-MGC-N20 New Genuine Part |
42301-MGC-N20 |
from US $41.89 |
||
|
8
|
8
42311-MGC-JB0 COLR, RR. WHEEL SIDE |
42311-MGC-JB0 |
from US $13.52 |
||
|
9
|
9
42312-MGC-JB0 COLR, RR. BRAKE SIDE |
42312-MGC-JB0 |
from US $13.72 |
||
|
10
|
10
42350-MGC-JB0 WHEEL SUB-ASSY., RR. |
42350-MGC-JB0 |
from US $928.88 |
||
|
11
|
11
42515-MGC-JB0 RING, RR. PULSER |
42515-MGC-JB0 |
from US $61.25 |
||
|
12
|
12
42615-MGC-JB0 FLANGE SUB-ASSY. |
42615-MGC-JB0 |
from US $145.52 |
||
|
13
|
13
42620-MGC-N40 Collar, rr. axle distance |
42620-MGC-N40 |
from US $13.02 |
||
|
14
|
14
42625-MGC-N20 Collar, rr. wheel distance |
42625-MGC-N20 |
from US $18.36 |
||
|
15
|
15
42701-MGC-JB1 RIM, RR. WHEEL |
42701-MGC-JB1 |
from US $383.52 |
||
|
16
|
16
42711-MGC-N22 TIRE(140/70R18M/C67V |
42711-MGC-N22 |
US $297.06 |
||
|
17
|
17
42712-MGC-N21
TUBE, TIRE
|
42712-MGC-N21 |
— | ||
| replacement | |||||
|
17
|
17
42712-MGC-N22 Tube, Tire |
42712-MGC-N22 |
US $22.17 |
||
|
18
|
18
42713-MGC-N21 FLAP, TIRE |
42713-MGC-N21 |
US $8.14 |
||
|
19
|
19
43251-MGC-000 Disk, rr. brake |
43251-MGC-000 |
from US $267.52 |
||
|
20
|
20
44721-MGC-003 Weight, Balance (10G) |
44721-MGC-003 |
from US $2.29 |
||
|
20
|
20
44722-MGC-003 New Genuine Part |
44722-MGC-003 |
from US $2.74 |
||
|
20
|
20
44723-MGC-003 Weight, Balance (20G) |
44723-MGC-003 |
from US $2.74 |
||
|
21
|
21
90102-MAS-000 Bolt, stud (12x25) |
90102-MAS-000 |
from US $2.59 |
||
|
22
|
22
90106-MGE-000 Bolt, disk (8x20) |
90106-MGE-000 |
from US $4.59 |
||
|
23
|
23
90131-KFK-630 Bolt, torx (5x10) |
90131-KFK-630 |
from US $2.27 |
||
|
24
|
24
90305-MFT-641 NutU, FLANGE, 18MM |
90305-MFT-641 |
from US $7.25 |
||
|
25
|
25
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
26
|
26
91051-MBR-003 Bearing,ball radi |
91051-MBR-003 |
from US $17.14 |
||
|
27
|
27
91053-MGS-D31 Bearing (6204) |
91053-MGS-D31 |
from US $10.21 |
||
|
28
|
28
91053-MM5-004 Bearing (6304uu) |
91053-MM5-004 |
from US $12.17 |
||
|
29
|
29
91251-MBR-003 Dust seal,37x68x7 |
91251-MBR-003 |
from US $13.71 |
||
|
30
|
30
91254-MJC-A01 Dust seal |
91254-MJC-A01 |
from US $8.70 |
||
|
31
|
31
91352-MCF-003 O-ring (51x2) |
91352-MCF-003 |
from US $3.70 |
||
|
32
|
32
42635-MGC-JB0 HUB SUB-ASSY., RR. |
42635-MGC-JB0 |
from US $315.52 |
||
