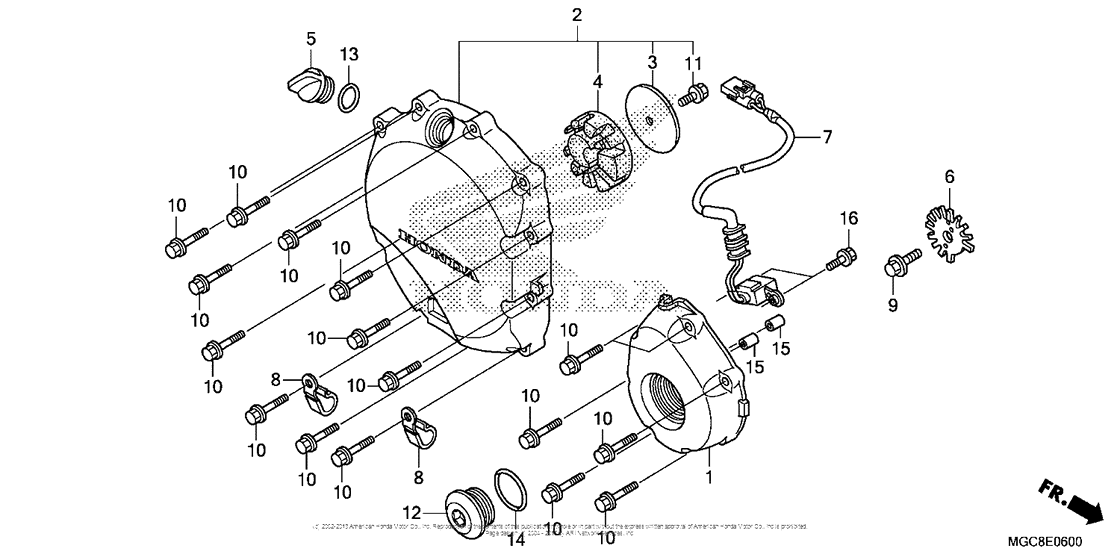

Right Crankcase Cover Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11311-MGC-920 COVER, R. CRANKCASE |
11311-MGC-920 |
from US $107.10 |
||
|
2
|
2
11330-MGC-J80 Cover assy., clutch |
11330-MGC-J80 |
from US $214.88 |
||
|
3
|
3
11333-MZ1-000 Plate |
11333-MZ1-000 |
from US $5.03 |
||
|
4
|
4
11334-MZ1-000 Rubber, clutch cover |
11334-MZ1-000 |
from US $14.96 |
||
|
5
|
5
15611-KA4-710 Cap, oil filler |
15611-KA4-710 |
from US $7.22 |
||
|
6
|
6
30291-MGC-010 Rotor, pulse |
30291-MGC-010 |
from US $10.95 |
||
|
7
|
7
30300-MGC-003 New Genuine Part |
30300-MGC-003 |
from US $49.50 |
||
|
8
|
8
35211-443-760 Clamp, switch wire |
35211-443-760 |
from US $3.27 |
||
|
9
|
9
90001-MGC-000 New Genuine Part |
90001-MGC-000 |
from US $3.48 |
||
|
10
|
10
90006-GHB-680 Bolt, flange (6x28) |
90006-GHB-680 |
from US $2.22 |
||
|
11
|
11
90029-MT4-000 Bolt, flange (6x12) |
90029-MT4-000 |
from US $1.70 |
||
|
12
|
12
90087-MR1-000 Cap (30mm) |
90087-MR1-000 |
from US $7.96 |
||
|
13
|
13
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
14
|
14
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
15
|
15
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
16
|
16
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
