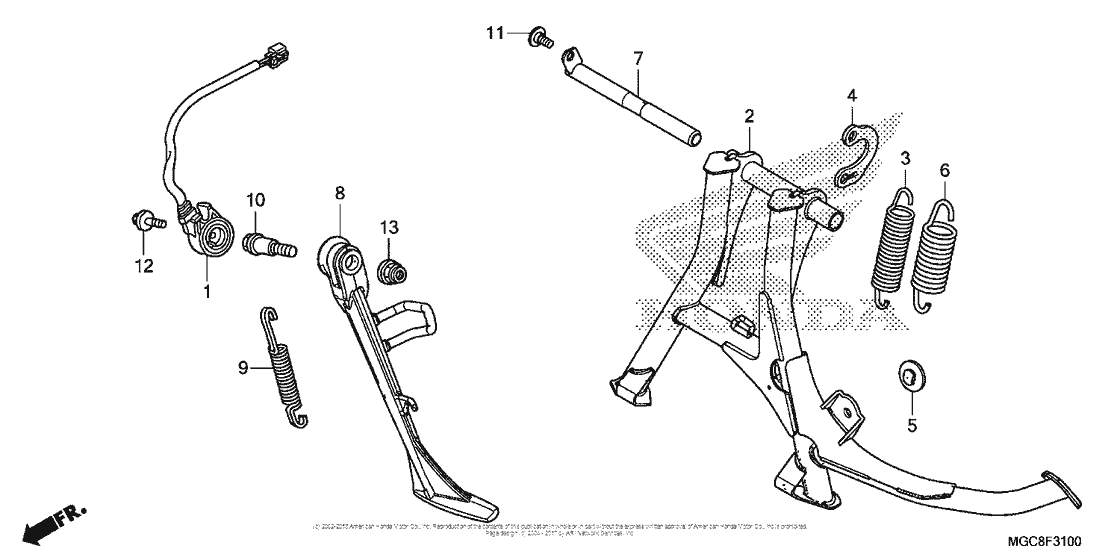

Stand Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35700-MGC-N21 Switch assy., side stand |
35700-MGC-N21 |
from US $44.47 |
||
|
2
|
2
50500-MGC-JB0 STAND COMP, MAIN |
50500-MGC-JB0 |
from US $168.64 |
||
|
3
|
3
50520-MGC-N20 Sub-spring, main stand |
50520-MGC-N20 |
from US $3.77 |
||
|
4
|
4
50523-MGC-N20 Plate, main stand spring |
50523-MGC-N20 |
from US $6.36 |
||
|
5
|
5
50524-MFP-N00 RubberSTAND STOPPER |
50524-MFP-N00 |
from US $9.07 |
||
|
6
|
6
50525-MGC-N20 Spring, main stand |
50525-MGC-N20 |
from US $5.92 |
||
|
7
|
7
50526-MGC-N20 Pipe, main stand pivot |
50526-MGC-N20 |
from US $14.42 |
||
|
8
|
8
50530-MGC-JB1 BAR COMP, SIDE STAND |
50530-MGC-JB1 |
from US $89.76 |
||
|
9
|
9
50540-MFL-000 Spring, side stand |
50540-MFL-000 |
from US $5.18 |
||
|
10
|
10
90108-MK6-670 Bolt |
90108-MK6-670 |
from US $5.18 |
||
|
11
|
11
90109-MEJ-000 Bolt,special 6mm |
90109-MEJ-000 |
from US $3.33 |
||
|
12
|
12
90147-MCE-950 Bolt, special (6x16) |
90147-MCE-950 |
from US $0.82 |
||
|
13
|
13
90203-MF9-710 Nut, side stand |
90203-MF9-710 |
from US $3.18 |
