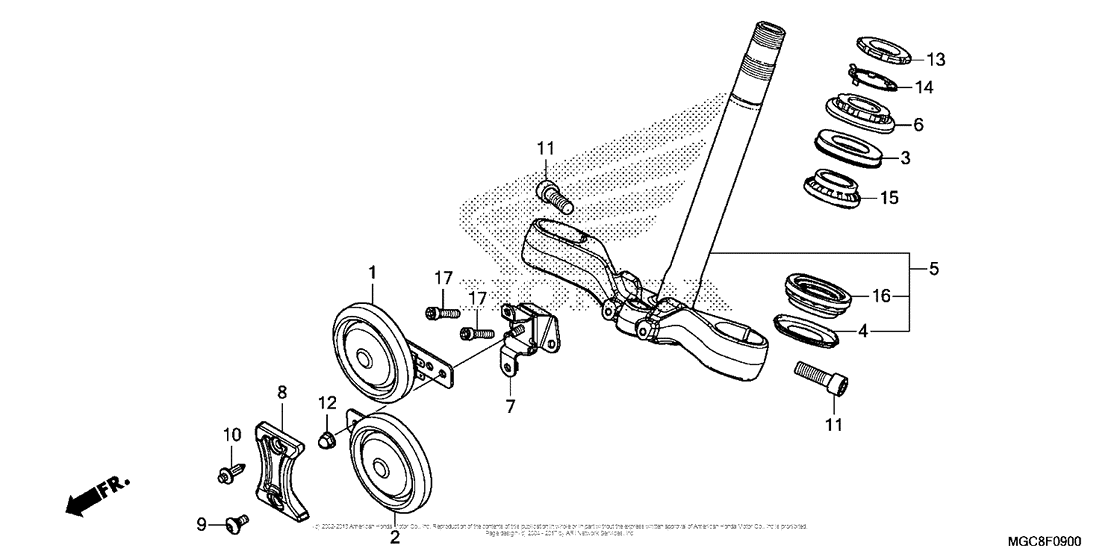

Steering Stem Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38110-MBR-J11 HORN COMP |
38110-MBR-J11 |
from US $59.16 |
||
|
2
|
2
38120-MBR-J11 HORN COMP |
38120-MBR-J11 |
from US $59.22 |
||
|
3
|
3
53213-MB4-771 Dust seal |
53213-MB4-771 |
from US $5.69 |
||
|
4
|
4
53214-371-010 Dust seal |
53214-371-010 |
from US $6.50 |
||
|
5
|
5
53219-MGC-JB0 STEM SUB-ASSY., STRG |
53219-MGC-JB0 |
from US $296.48 |
||
|
6
|
6
53220-MB2-000 Thred,strg.hndl. |
53220-MB2-000 |
from US $21.62 |
||
|
7
|
7
61406-MGC-JB0 STAY, HORN |
61406-MGC-JB0 |
from US $22.23 |
||
|
8
|
8
61407-MGC-JB0 COVER, HORN |
61407-MGC-JB0 |
from US $8.60 |
||
|
9
|
9
90115-MGZ-J00 Screw (6x14) |
90115-MGZ-J00 |
from US $1.51 |
||
|
10
|
10
90116-MCS-G00 Push rivet |
90116-MCS-G00 |
from US $1.10 |
||
|
11
|
11
90120-MCH-A00 Bolt, socket (10x32) |
90120-MCH-A00 |
from US $3.09 |
||
|
12
|
12
90201-428-900 Nut, cap, 6mm |
90201-428-900 |
from US $3.26 |
||
|
13
|
13
90302-425-830 Thread |
90302-425-830 |
from US $10.82 |
||
|
14
|
14
90506-425-830 Washer, lock |
90506-425-830 |
from US $4.74 |
||
|
15
|
15
91015-KT8-005 Bearing, head pipe |
91015-KT8-005 |
from US $18.77 |
||
|
16
|
16
91016-KT8-005 Bearing, head pipe |
91016-KT8-005 |
from US $20.25 |
||
|
17
|
17
96600-060-280-7 Bolt socket 6x28 |
96600-060-280-7 |
from US $0.74 |
