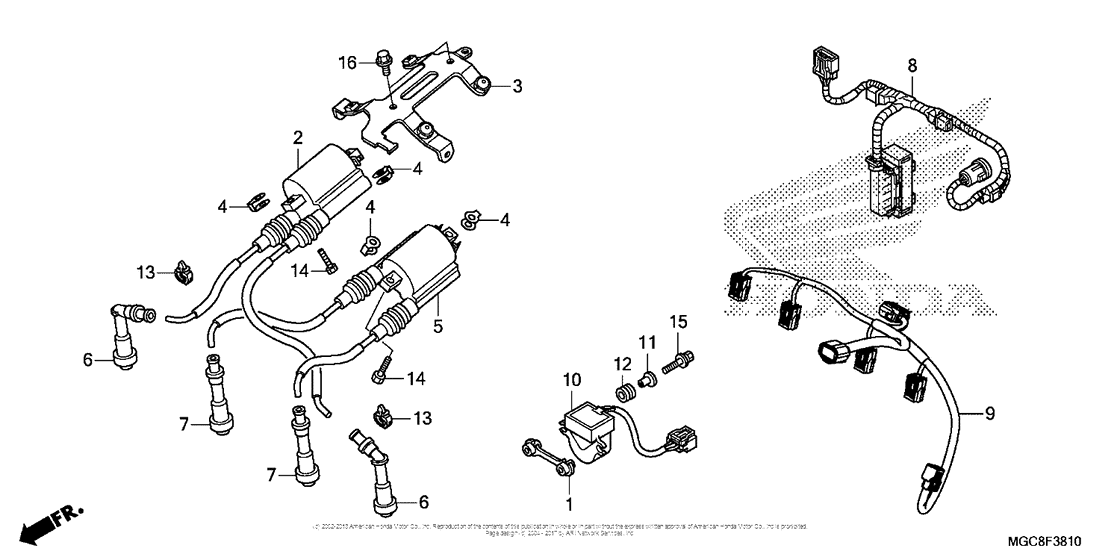

Sub Harness + Ignition Coil Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18311-MGC-000 New Genuine Part |
18311-MGC-000 |
from US $9.55 |
||
|
2
|
2
30511-MGC-D31 Coil, ignition (1,4) |
30511-MGC-D31 |
from US $76.84 |
||
|
3
|
3
30515-MGC-000 New Genuine Part |
30515-MGC-000 |
from US $21.70 |
||
|
4
|
4
30520-ML7-000 Spacer |
30520-ML7-000 |
from US $2.89 |
||
|
5
|
5
30521-MGC-D31 Coil, ignition (2,3) |
30521-MGC-D31 |
from US $76.84 |
||
|
6
|
6
30700-MGC-013 New Genuine Part |
30700-MGC-013 |
from US $26.25 |
||
|
7
|
7
30705-MGC-013 New Genuine Part |
30705-MGC-013 |
from US $26.25 |
||
|
8
|
8
32102-MGC-JB0 SUB-HARNESS, ABS |
32102-MGC-JB0 |
from US $80.24 |
||
|
9
|
9
32103-MGC-JB0 SUB-HARNESS, INJ |
32103-MGC-JB0 |
US $113.49 |
||
|
10
|
10
35161-MGC-JB1 SENSOR COMP |
35161-MGC-JB1 |
from US $99.96 |
||
|
11
|
11
35162-MGC-003 Collar |
35162-MGC-003 |
from US $4.29 |
||
|
12
|
12
35163-MGC-003 Grommet |
35163-MGC-003 |
from US $2.22 |
||
|
13
|
13
90683-MGC-920 New Genuine Part |
90683-MGC-920 |
from US $2.52 |
||
|
14
|
14
92101-06020-4J Bolt, hex., 6x20 |
92101-06020-4J |
from US $0.89 |
||
|
15
|
15
92301-06020-0A BoltRECESSED, 6X20 |
92301-06020-0A |
from US $0.52 |
||
|
16
|
16
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
