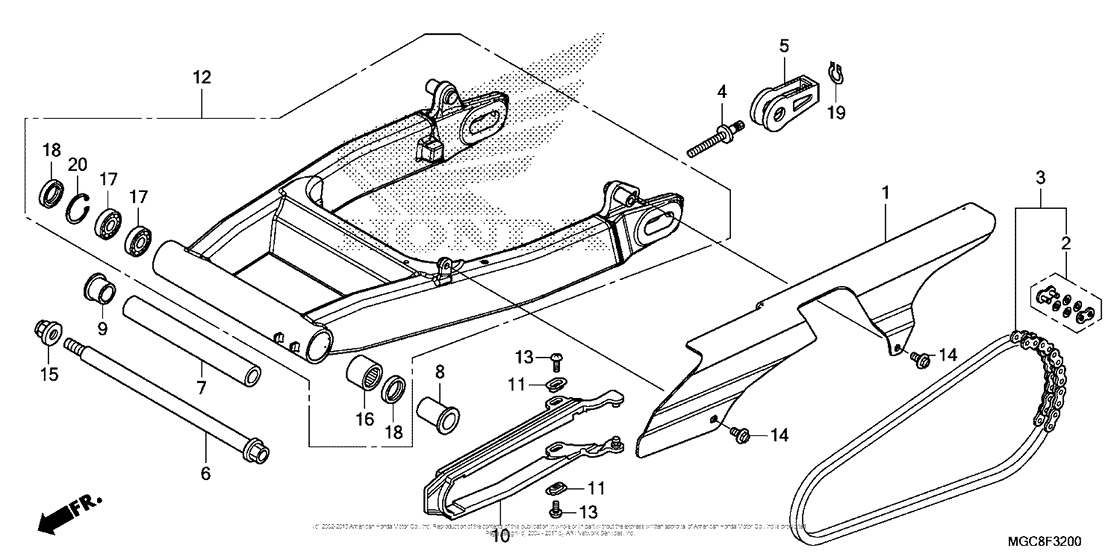

Swingarm (1) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-MGC-JB0 CASE, DRIVE CHAIN |
40510-MGC-JB0 |
from US $108.12 |
||
|
2
|
2
40531-MFL-005 Master link |
40531-MFL-005 |
from US $9.18 |
||
|
2
|
2
40541-MFL-003 Master link |
40541-MFL-003 |
from US $9.18 |
||
|
3
|
3
40540-MFL-003 Chain,did50va11-120z |
40540-MFL-003 |
from US $210.80 |
||
|
3
|
3
40540-MFL-005 Chain, drive |
40540-MFL-005 |
from US $210.80 |
||
|
4
|
4
40542-MGC-N20 Bolt, chain adjusting |
40542-MGC-N20 |
from US $6.22 |
||
|
5
|
5
40543-MGC-N20 Adjuster, chain |
40543-MGC-N20 |
from US $18.50 |
||
|
6
|
6
52101-MGC-JB0 BOLT, SWINGARM PIVOT |
52101-MGC-JB0 |
from US $31.42 |
||
|
7
|
7
52102-MGC-D30 Collar, swingarm |
52102-MGC-D30 |
from US $11.25 |
||
|
8
|
8
52106-MGC-D30 Collar b, pivot |
52106-MGC-D30 |
from US $15.50 |
||
|
9
|
9
52142-MGC-JB0 COLLAR, R PIVOT DIST |
52142-MGC-JB0 |
from US $9.47 |
||
|
10
|
10
52170-MGC-000 New Genuine Part |
52170-MGC-000 |
from US $28.70 |
||
|
11
|
11
52171-KR6-000 Washer, chain slider |
52171-KR6-000 |
from US $2.44 |
||
|
12
|
12
52200-MGC-JB0 SWINGARM SUB, RR. |
52200-MGC-JB0 |
from US $739.84 |
||
|
13
|
13
90104-ML7-920 Screw, pan (5x10) |
90104-ML7-920 |
from US $1.78 |
||
|
14
|
14
90105-MGC-JB0 BOLT (6X12) |
90105-MGC-JB0 |
from US $2 |
||
|
15
|
15
90305-MB4-003 Nut, flange (18mm) |
90305-MB4-003 |
from US $7.15 |
||
|
16
|
16
91071-MR7-003 Bearing, needle |
91071-MR7-003 |
from US $7.70 |
||
|
17
|
17
91072-MR7-003 Bearing (20x37x9) |
91072-MR7-003 |
from US $6.73 |
||
|
18
|
18
91202-MR7-003 Dust seal (28x37x4) |
91202-MR7-003 |
from US $3.29 |
||
|
19
|
19
9451110000 Circlip (10mm) |
9451110000 |
from US $0.47 |
||
|
20
|
20
9452037000 Circlip (37mm) |
9452037000 |
from US $1.10 |
