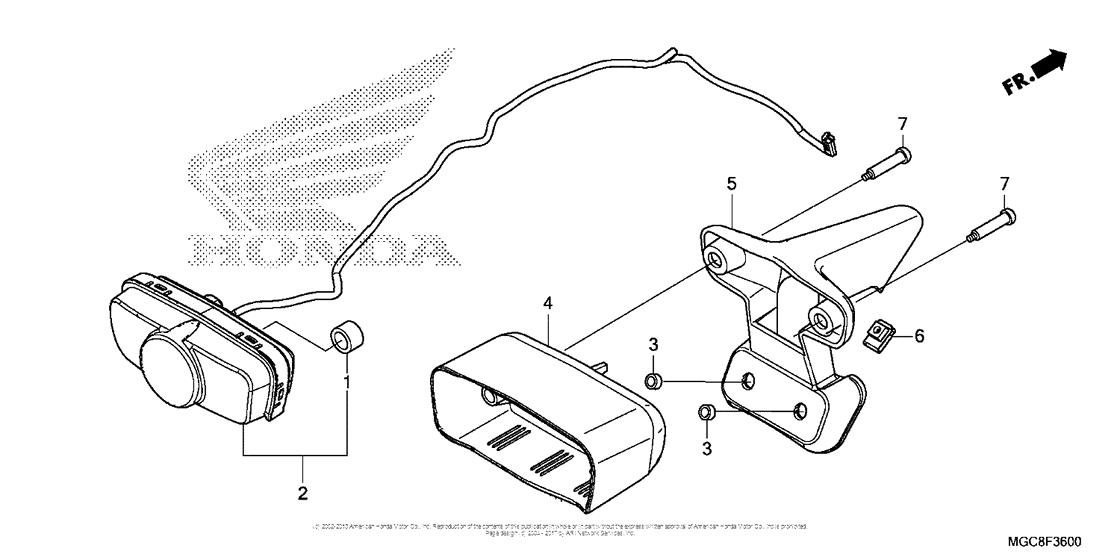

Taillight Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33113-MEE-D01 Pipe, cp |
33113-MEE-D01 |
from US $2.59 |
||
|
2
|
2
33701-MGC-JB1 UNIT, TAILLIGHT |
33701-MGC-JB1 |
from US $307.36 |
||
|
3
|
3
50605-GZ4-670 Collar |
50605-GZ4-670 |
from US $2.15 |
||
|
4
|
4
80110-MGC-AA0 COVER, TAILLIGHT |
80110-MGC-AA0 |
from US $52.25 |
||
|
5
|
5
80120-MGC-JB0 BASE, TAILLIGHT |
80120-MGC-JB0 |
from US $73.44 |
||
|
6
|
6
84601-HA7-670 Nut, fender setting |
84601-HA7-670 |
from US $4.82 |
||
|
7
|
7
90113-MGC-AA0 SCREW, SPL (5MM) |
90113-MGC-AA0 |
from US $6.94 |
